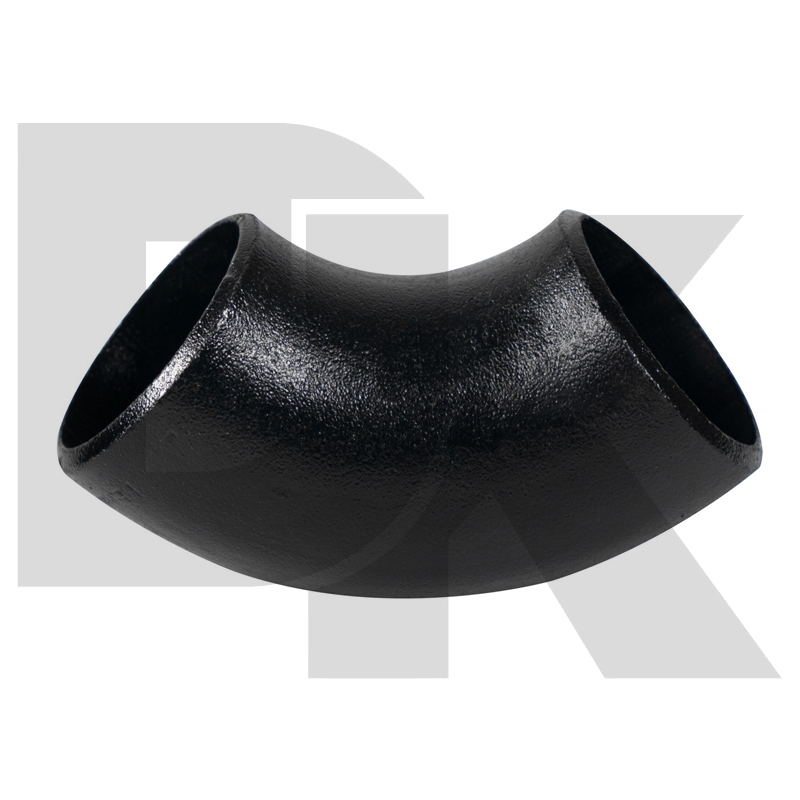

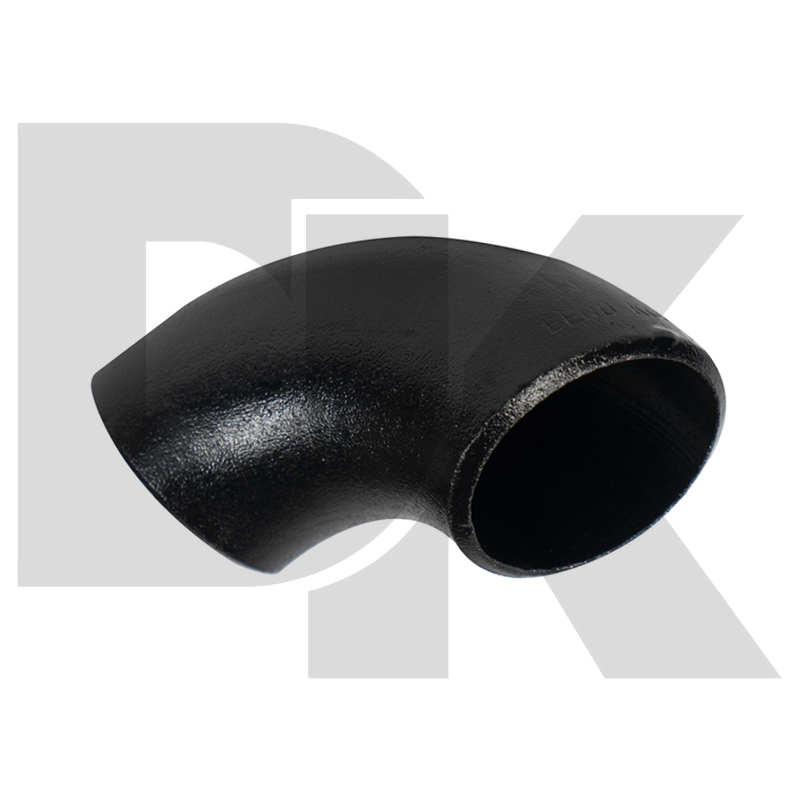

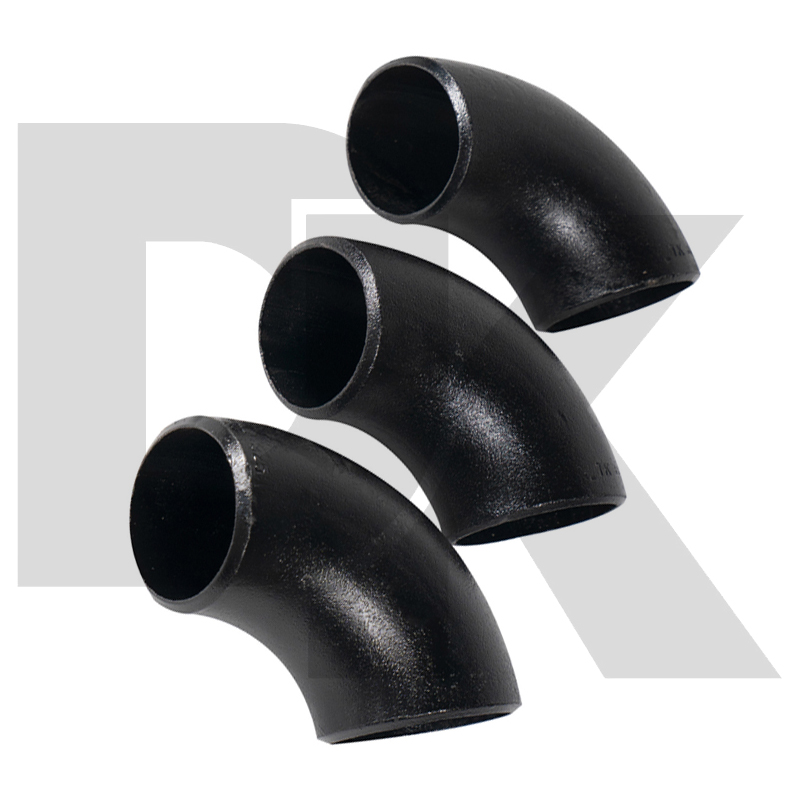

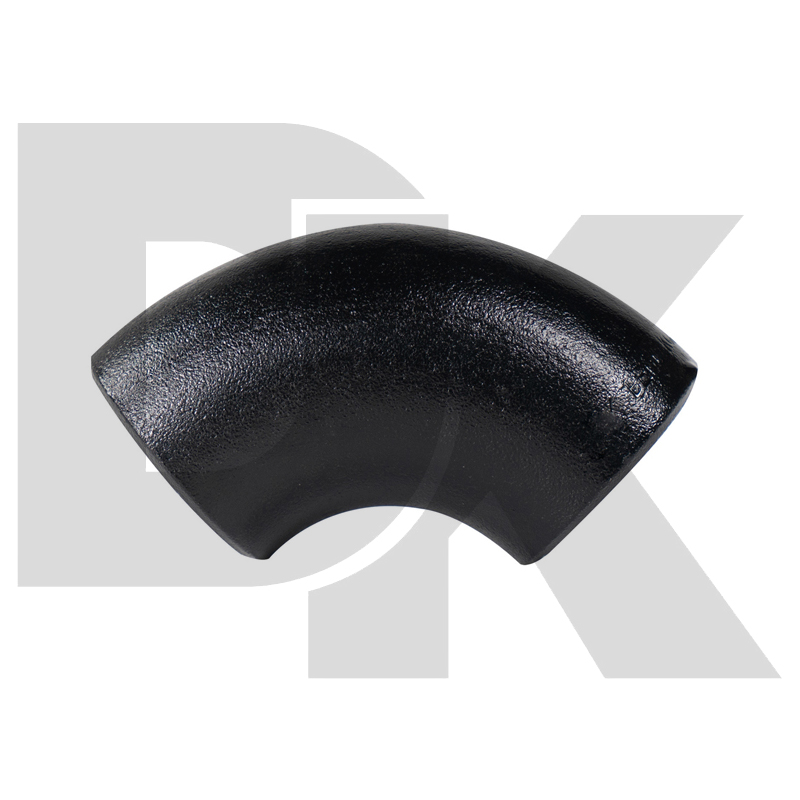

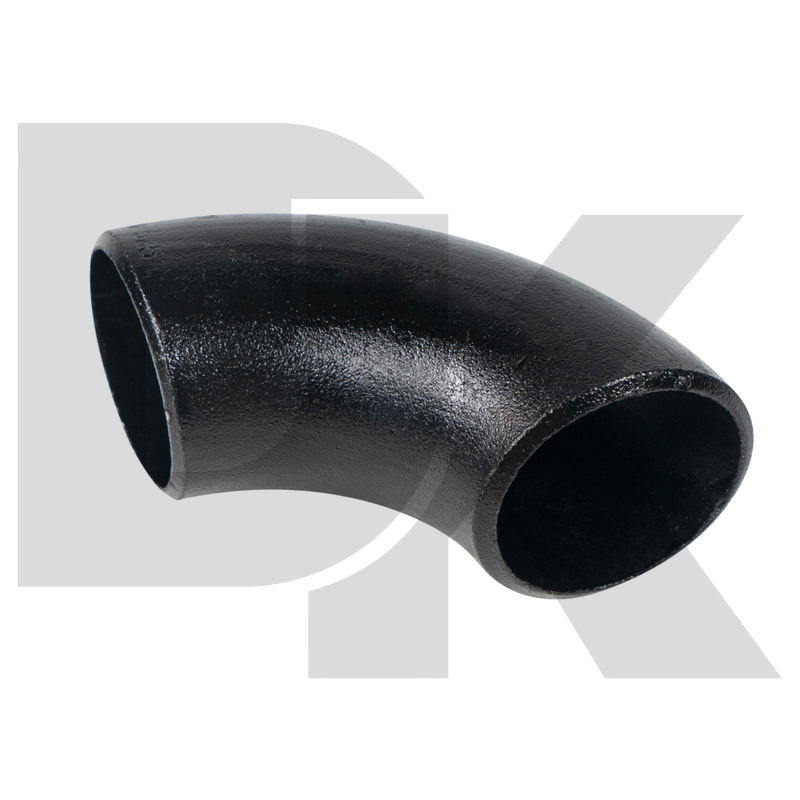

product description
| Gr W(kgs) | 45ºELBOWS LONG RADIUS | 90ºELBOWS LONG RADIUS | |||||||||||||
| DN | NPS | STD | S40 | XS | S80 | S120 | S160 | XXS | STD | S40 | XS | S80 | S120 | S160 | XXS |
| DN15 | ½" | 0.04 | 0.04 | 0.05 | 0.05 | 0.06 | 0.08 | 0.08 | 0.08 | 0.1 | 0.1 | 0.12 | 0.16 | ||
| DN20 | ¾" | 0.05 | 0.05 | 0.07 | 0.07 | 0.08 | 0.11 | 0.11 | 0.11 | 0.13 | 0.13 | 0.18 | 0.22 | ||
| DN25 | 1" | 0.08 | 0.08 | 0.09 | 0.09 | 0.13 | 0.16 | 0.15 | 0.15 | 0.19 | 0.19 | 0.26 | 0.33 | ||
| DN32 | 1¼" | 0.13 | 0.13 | 0.17 | 0.17 | 0.22 | 0.29 | 0.26 | 0.26 | 0.34 | 0.34 | 0.43 | 0.58 | ||
| DN40 | 1½" | 0.18 | 0.18 | 0.24 | 0.24 | 0.33 | 0.43 | 0.37 | 0.37 | 0.48 | 0.48 | 0.65 | 0.86 | ||
| DN50 | 2" | 0.33 | 0.33 | 0.44 | 0.44 | 0.67 | 0.81 | 0.65 | 0.65 | 0.88 | 0.88 | 1.33 | 1.81 | ||
| DN65 | 2½" | 0.68 | 0.68 | 0.88 | 0.88 | 1.17 | 1.52 | 1.35 | 1.35 | 1.75 | 1.75 | 2.33 | 3.05 | ||
| DN80 | 3" | 1 | 1 | 1.35 | 1.35 | 1.92 | 2.34 | 2.01 | 2.01 | 2.69 | 2.69 | 3.84 | 4.69 | ||
| DN90 | 3½" | 1.4 | 1.4 | 1.92 | 1.92 | 2.79 | 2.79 | 3.84 | 3.84 | ||||||
| DN100 | 4" | 1.9 | 1.9 | 2.64 | 2.64 | 3.39 | 4.03 | 4.9 | 3.8 | 3.8 | 5.27 | 5.27 | 6.77 | 8.05 | 9.81 |
| DN125 | 5" | 3.21 | 3.21 | 4.49 | 4.49 | 6 | 7.3 | 8.6 | 6.42 | 6.42 | 8.98 | 8.98 | 12 | 14.5 | 17.2 |
| DN150 | 6" | 4.93 | 4.93 | 7.4 | 7.4 | 9.7 | 11.8 | 14.2 | 9.85 | 9.85 | 14.8 | 14.8 | 19.4 | 23.6 | 28.4 |
| DN200 | 8" | 10.5 | 10.5 | 15.1 | 15.1 | 21.6 | 26.3 | 25.8 | 21 | 21 | 30.1 | 30.1 | 43.3 | 52.5 | 51.6 |
| DN250 | 10" | 18.1 | 18.1 | 23.9 | 28.5 | 39.8 | 50.5 | 46.4 | 36.1 | 36.1 | 47.8 | 57.1 | 79.5 | 101 | 92.7 |
| DN300 | 12" | 25.8 | 28.4 | 34.3 | 46.3 | 67 | 84 | 67 | 51.6 | 56.8 | 68.5 | 92.5 | 134 | 168 | 134 |
| DN350 | 14" | 34.1 | 39.8 | 44.9 | 66 | 94 | 116 | 68.2 | 79.1 | 89.8 | 132 | 188 | 236 | ||
| DN400 | 16" | 44.7 | 59 | 58 | 96.5 | 137 | 171 | 89.4 | 118 | 118 | 193 | 274 | 342 | ||
| DN450 | 18" | 56.5 | 84 | 75 | 137 | 196 | 247 | 113 | 168 | 150 | 274 | 391 | 494 | ||
| DN500 | 20" | 70 | 93 | 186 | 264 | 338 | 140 | 219 | 186 | 372 | 527 | 676 | |||
| DN550 | 22" | 84.5 | 113 | 246 | 347 | 450 | 169 | 225 | 491 | 695 | 899 | ||||
| DN600 | 24" | 101 | 135 | 317 | 460 | 580 | 202 | 366 | 269 | 634 | 920 | 1160 | |||
| DN650 | 26" | 119 | 158 | 237 | 316 | ||||||||||
| DN700 | 28" | 137 | 183 | 275 | 367 | ||||||||||
| DN750 | 30" | 159 | 211 | 317 | 421 | ||||||||||
| DN800 | 32" | 180 | 240 | 360 | 658 | 480 | |||||||||
| DN850 | 34" | 203 | 271 | 407 | 741 | 524 | |||||||||
| DN900 | 36" | 229 | 304 | 457 | 905 | 608 | |||||||||
