Simple Structure Elbow Tee Beveling Machine

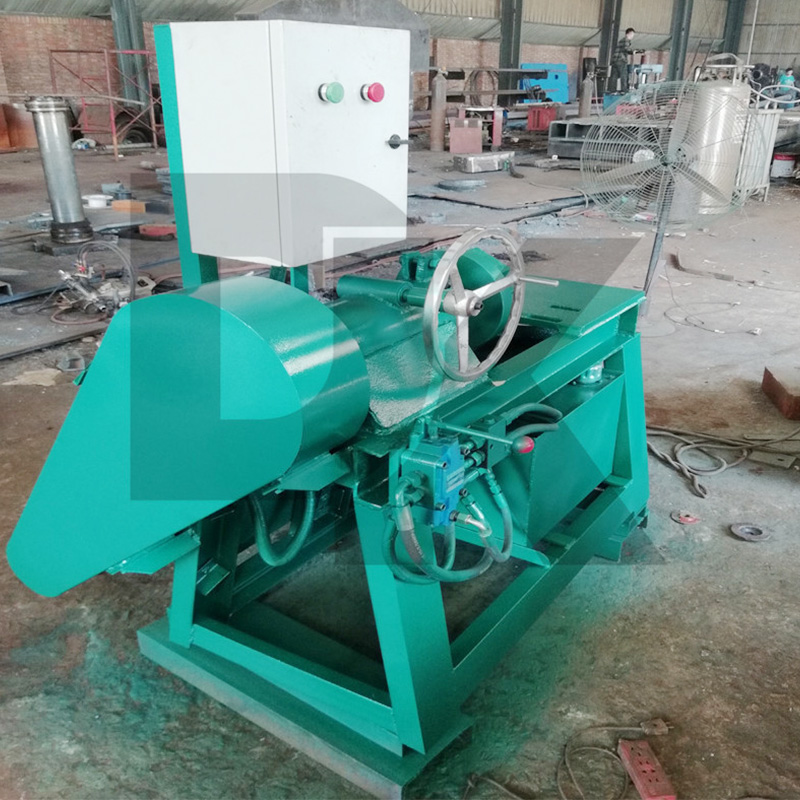

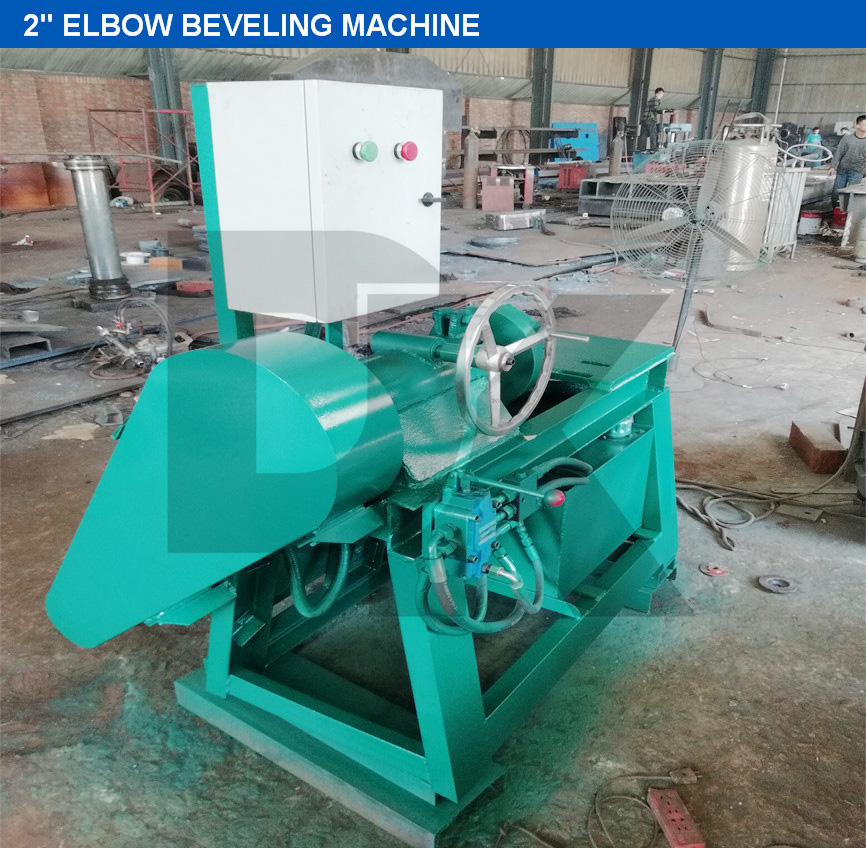

Elbow pipe beveling machine

It is one of the end equipment for the manufacture of elbow pipe fittings and is used for machining the end of elbow pipe fittings. The existing elbow beveling machine generally includes a workbench, an upper beam, a lower beam, a first beveling mechanism and a second bevel The lower beam is in the shape of "L" which is perpendicular to each other. The two ends of the lower beam are respectively provided with a first groove mechanism and a second groove mechanism. The first groove mechanism and the second groove mechanism form an included angle of 90 degrees and the two The front end of the machine is facing the worktable, and the upper beam is directly above the worktable. The above-mentioned elbow beveling machine is operated manually except for the rotating part of the cutter head, which is driven by mechanical power. , The plane knife and the beveling knife cannot process the pipe together, and the longitudinal feed part of the tool is also adjusted manually.
