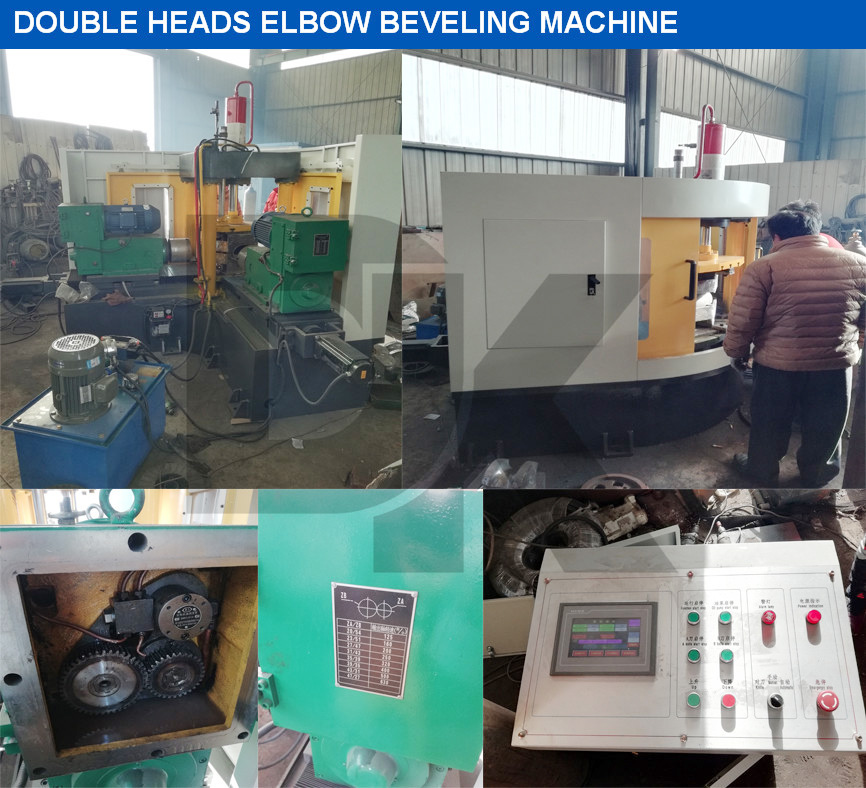

Double Heads Automatic Elbow Beveling Machine

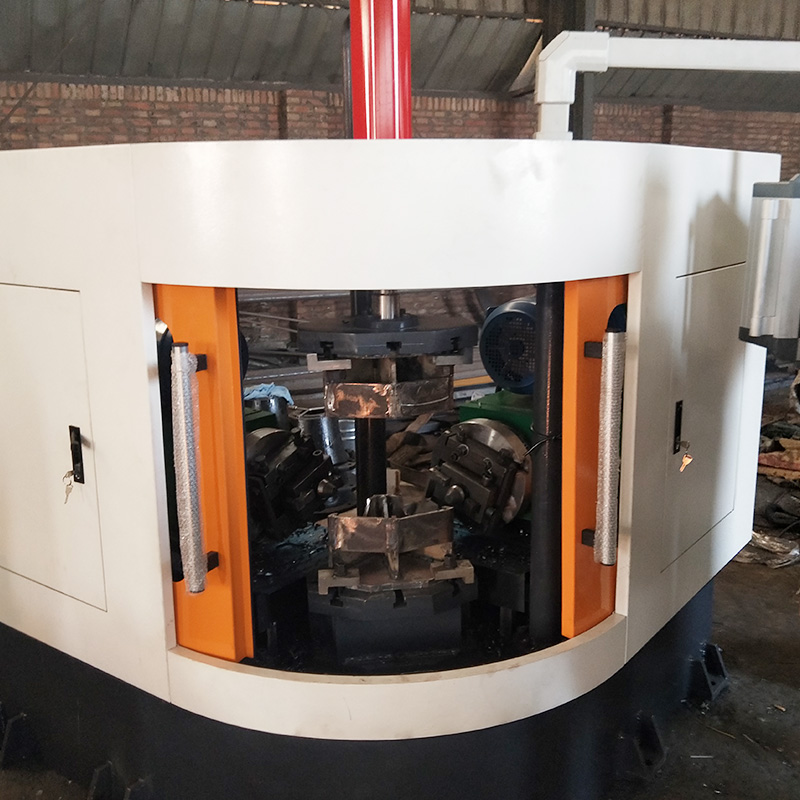

The double-head beveling machine for elbows is composed of the upper oil cylinder, upper and lower clamps, and the worktable to press the workpiece, and the two sliding tables drive the power head to move and the power head tool rotates to complete the processing of the bevel at both ends of the elbow workpiece.

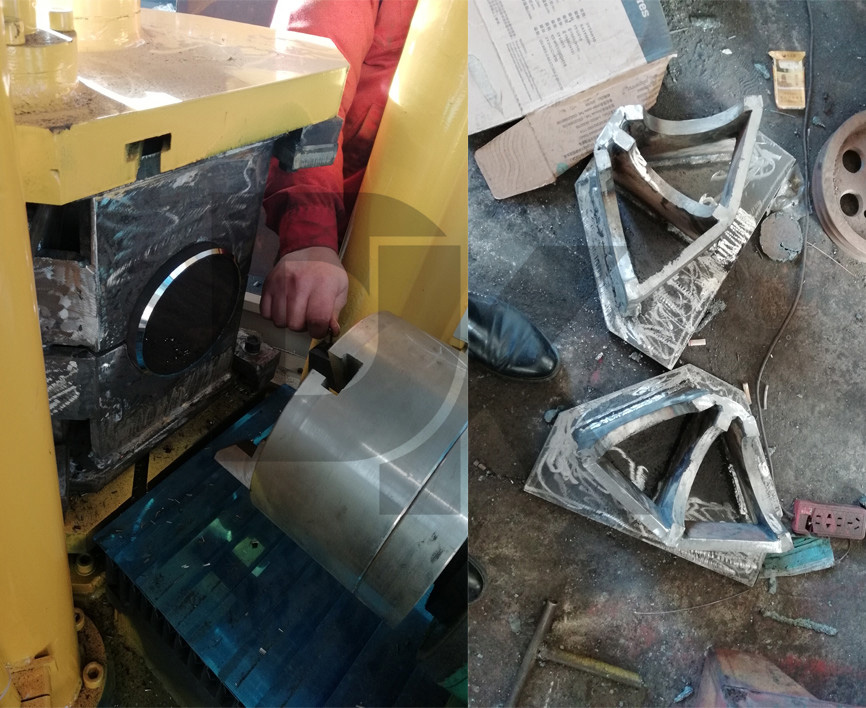

The upper jig is driven by the lifting of the upper oil cylinder to press the elbow workpiece. One station of the lower jig is used for processing the elbow workpiece, and the other station is used for loading and unloading the elbow workpiece. ; Each time an elbow workpiece is processed, the table rotates 180 degrees to repeat the positioning, and the double-station processing is performed continuously.

The double-head beveling machining station solves the problem that the existing beveling machine in the prior art adopts ordinary lathes for batch processing, single-head manual special machining or double-head single-station single-cycle processing, resulting in low efficiency and high technical level requirements of workers. shortcoming.
