Mandrel Stainless Steel Elbow Cold Forming Machine China Manufacturer

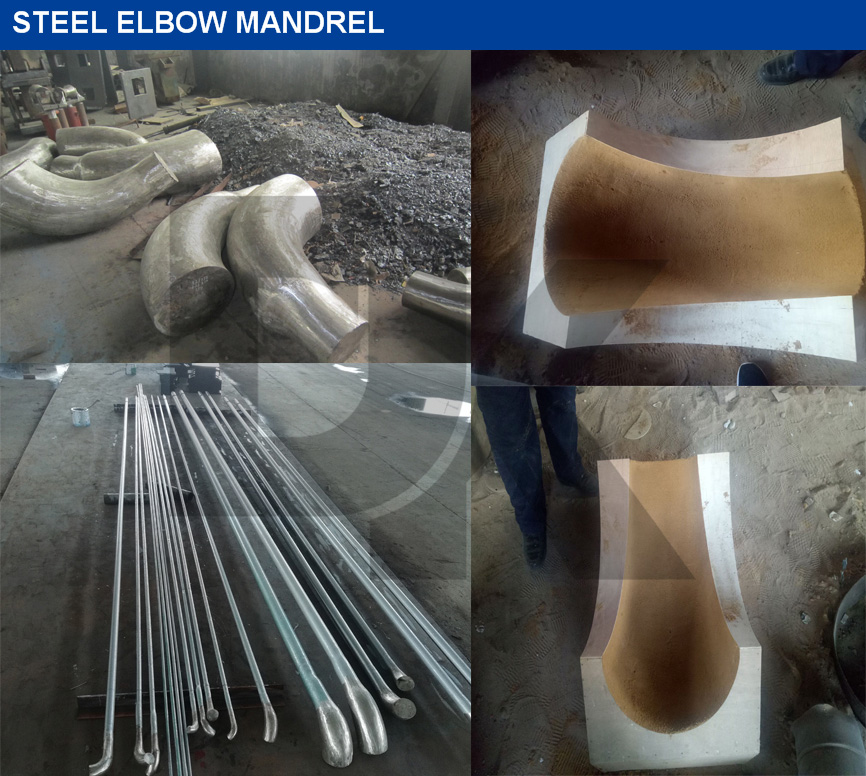

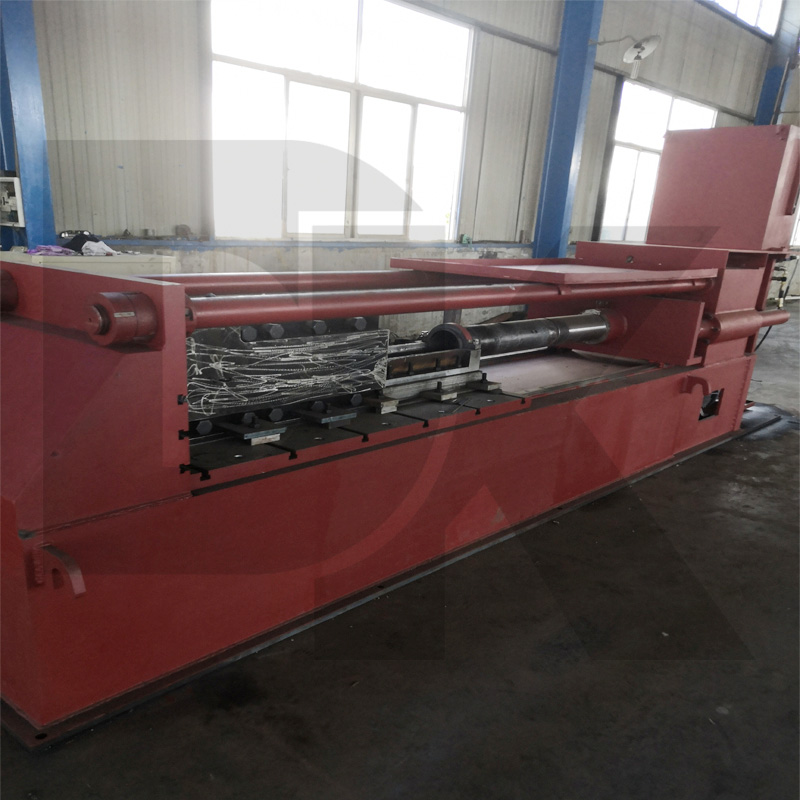

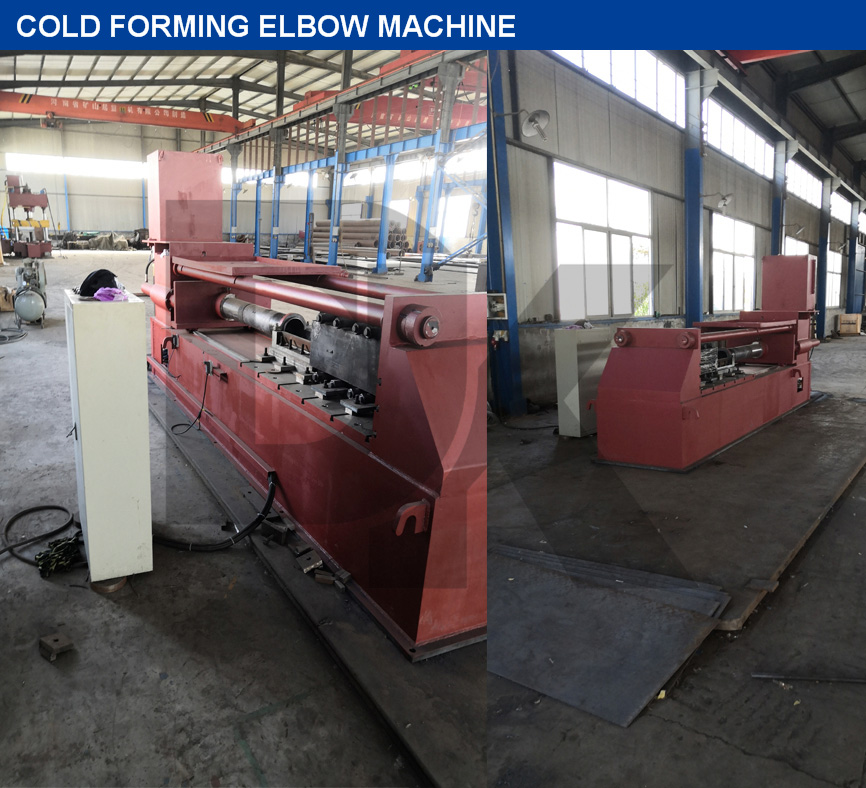

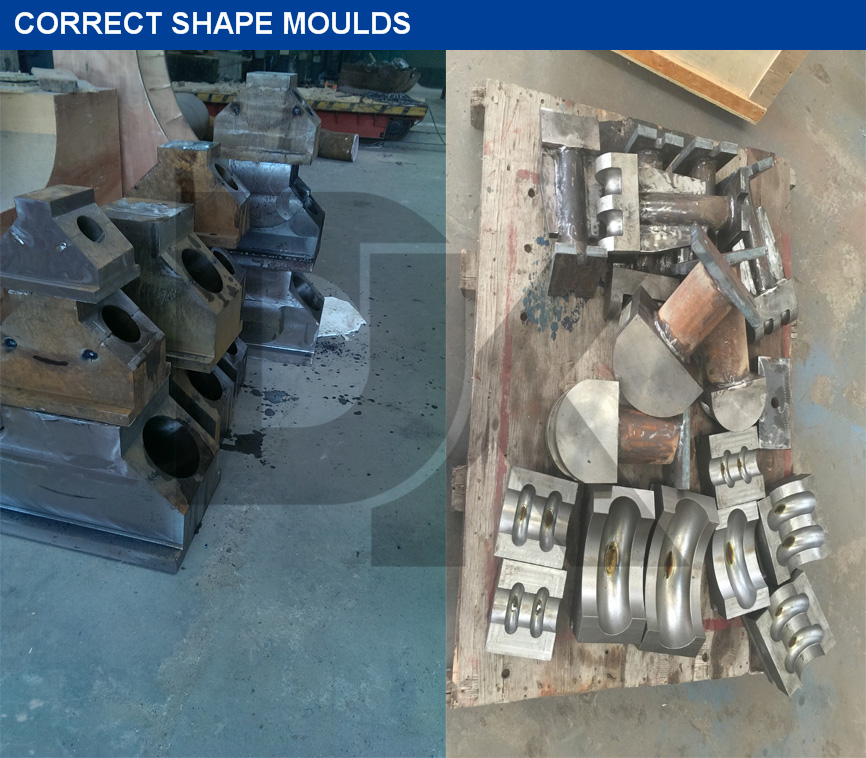

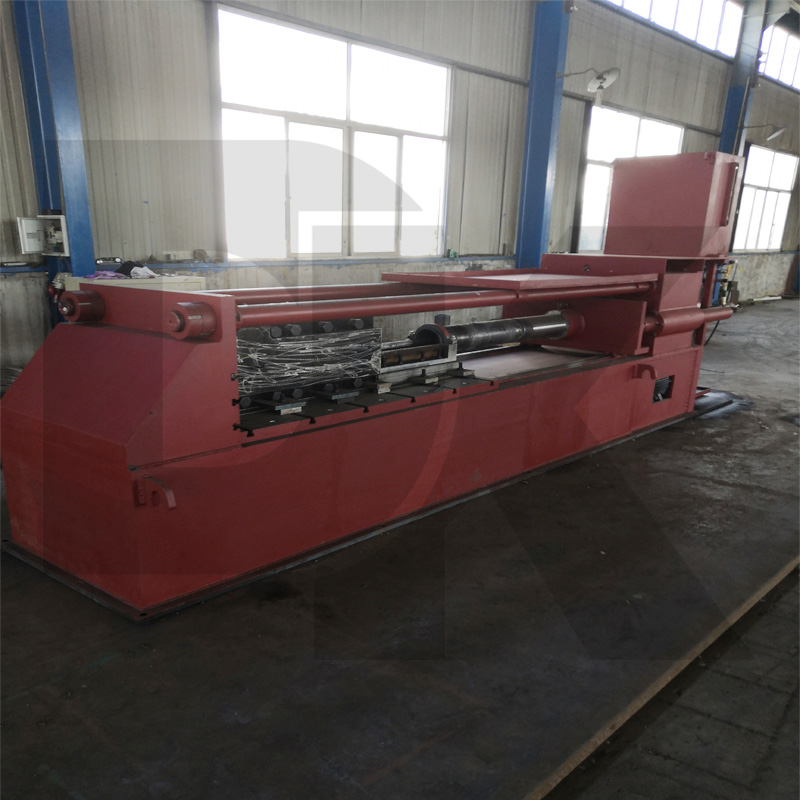

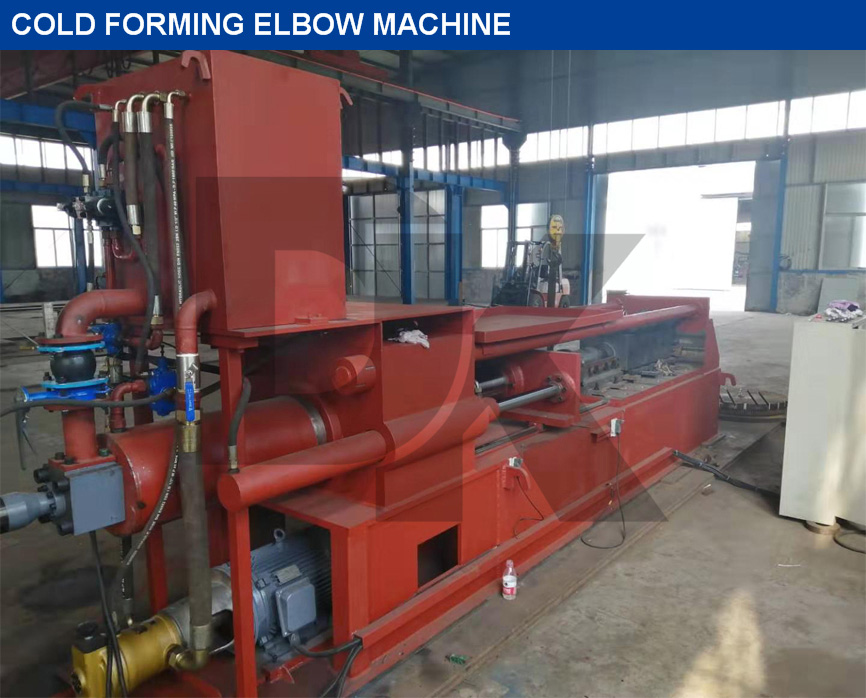

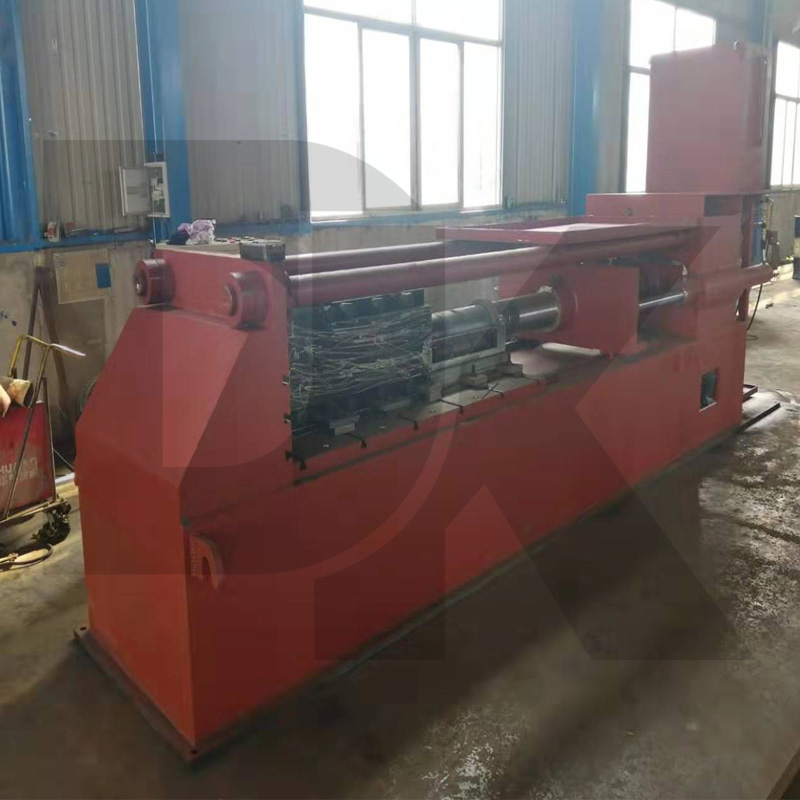

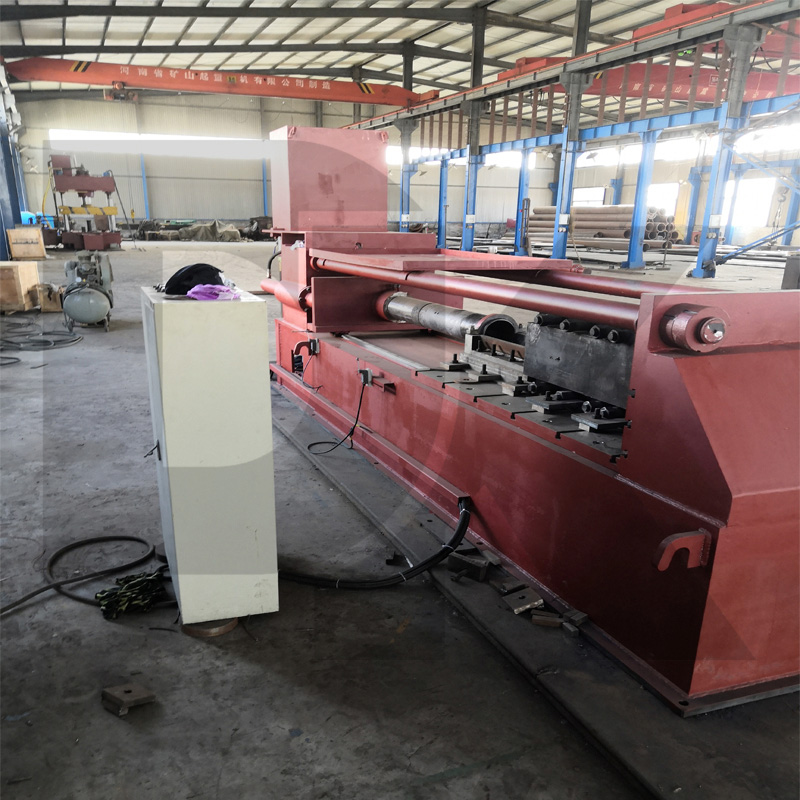

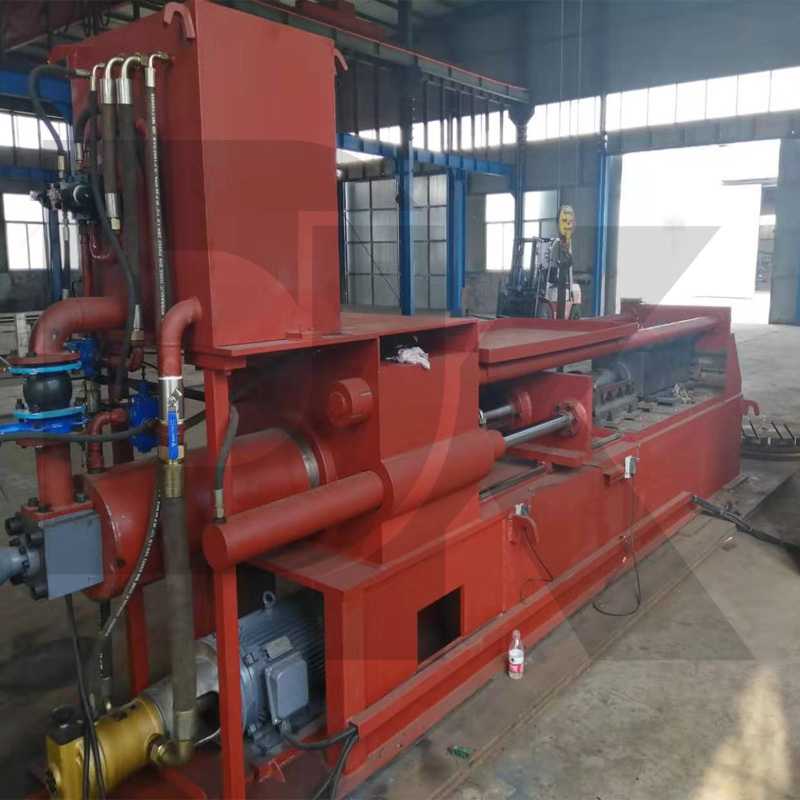

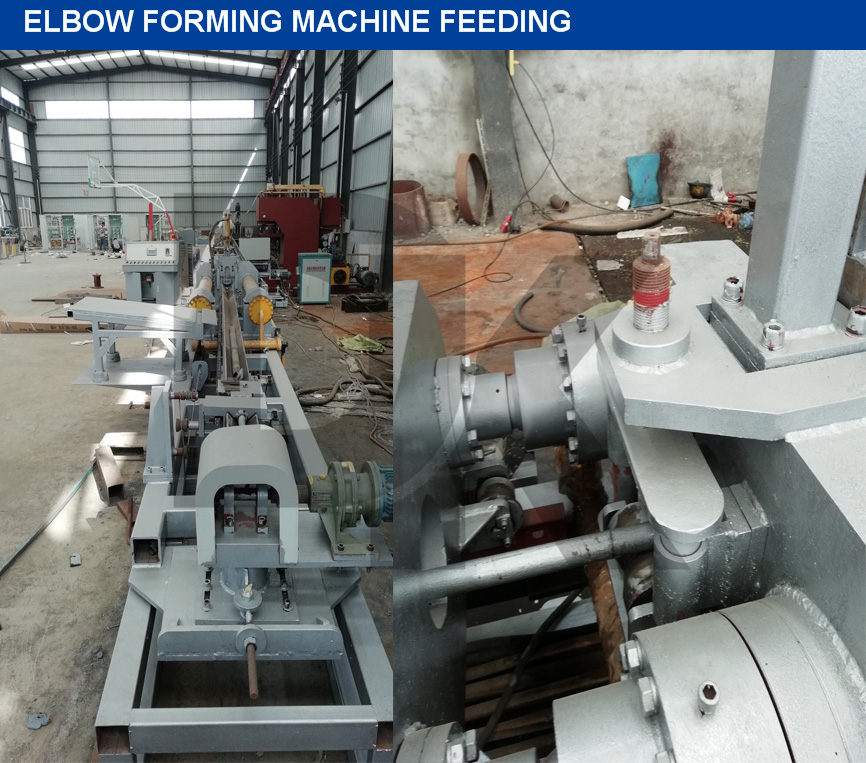

Stainless steel elbow cold forming machine is a device for processing stainless steel elbow by cold extrusion elbow forming method, which has been widely used in the field of stainless steel elbow production; the existing stainless steel elbow cold push The machine includes a machine base, a pushing mechanism, a positioning mechanism, a mold assembly and an unloading mechanism. The pushing mechanism is installed on the top left side of the machine base, and the positioning mechanism is installed on the top right side of the machine base. The mold assembly is provided with an upper mold, a lower mold and a The horn bar core, the lower die is installed at the top of the machine base and is located on the lower side of the positioning mechanism, the upper die is installed at the bottom end of the positioning mechanism, the positions of the upper die and the lower die are longitudinally corresponding, and the bottom end of the unloading mechanism is installed at the bottom of the machine base On the right rear side of the top, the fixed end of the horn core is installed at the output end of the unloading mechanism; when the existing stainless steel elbow cold pusher is used, the pipe material of the stainless steel elbow is first put into the entrance of the cavity of the lower die Then, the positioning mechanism drives the upper mold to move down so that the upper mold and the lower mold are closed, and then the output end of the push mechanism pushes the stainless steel elbow pipe material under the limit of the upper mold and the lower mold, and pushes the sleeve to the horn rod. After the cold push is completed, the pushing mechanism and the positioning mechanism are reset in turn, and then the unloading mechanism lifts the processed elbow out of the lower die through the horn core, and finally the unloading mechanism places the stainless steel elbow on the horn rod. It can be removed from the core; in the use of the existing stainless steel elbow cold pusher, it is found that when processing stainless steel elbows with different pipe diameters, it is necessary to replace different types of upper die, lower die and horn core, but the upper die When replacing the lower die,

It is necessary for the staff to reposition it to correspond to the longitudinal direction and match the push mechanism, and the adjustment process is cumbersome, thus reducing the convenience of use of the stainless steel elbow cold pusher, resulting in poor practicability.
