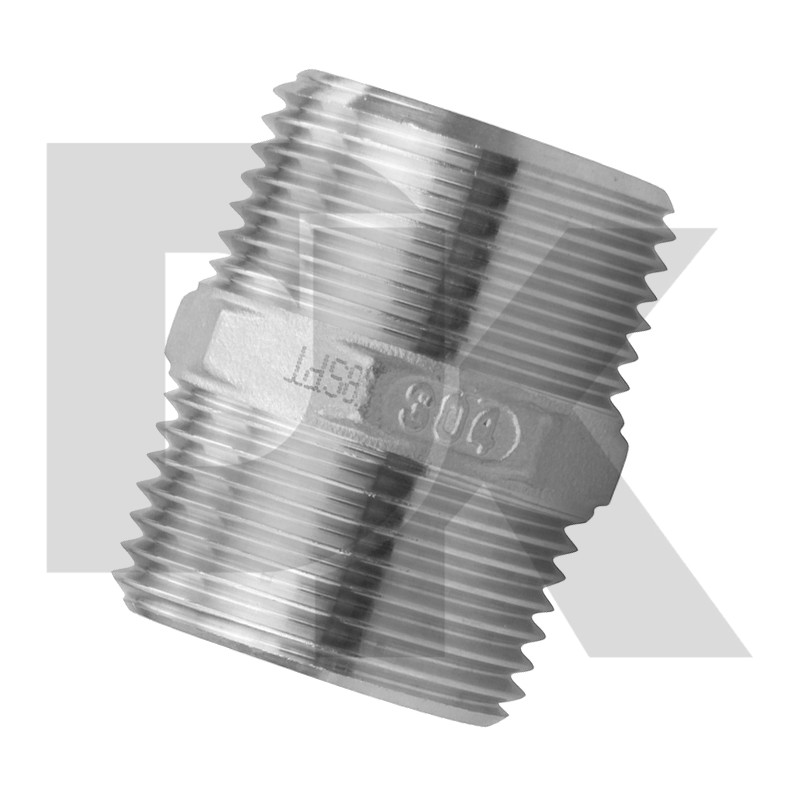

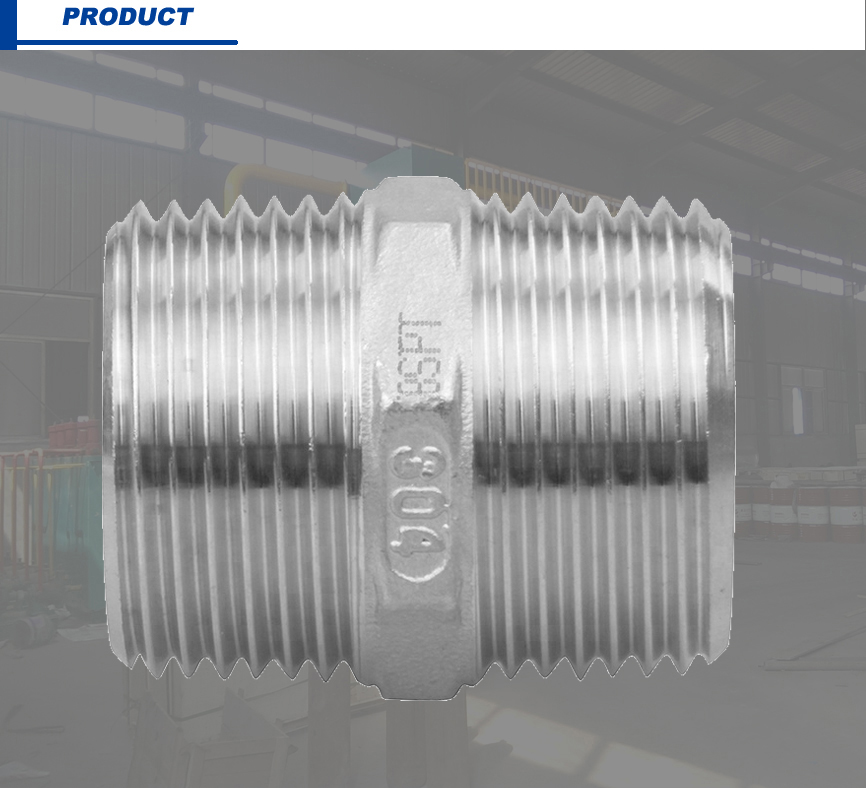

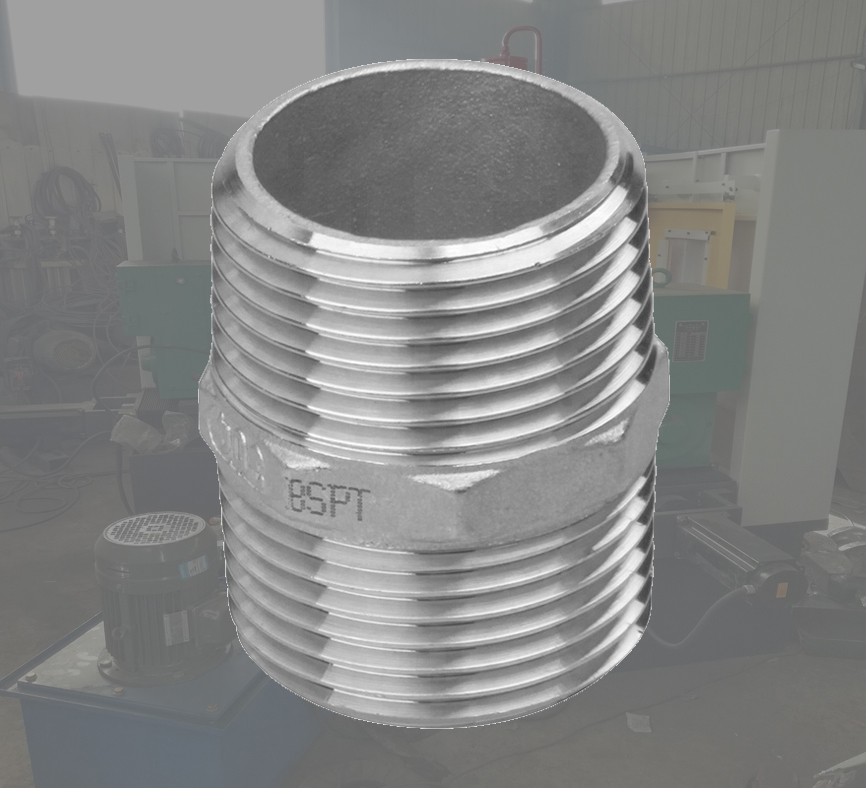

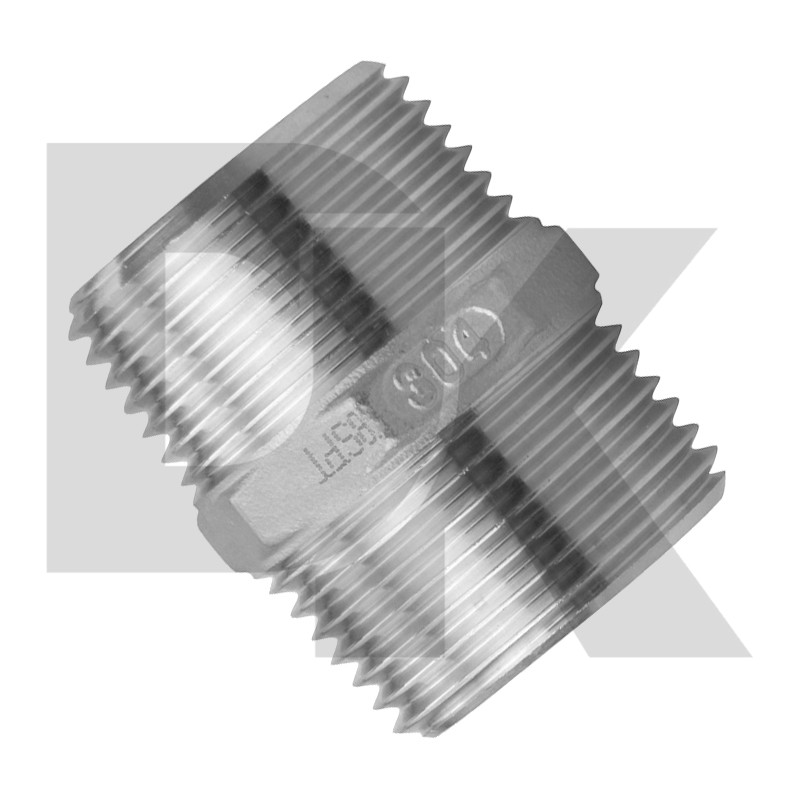

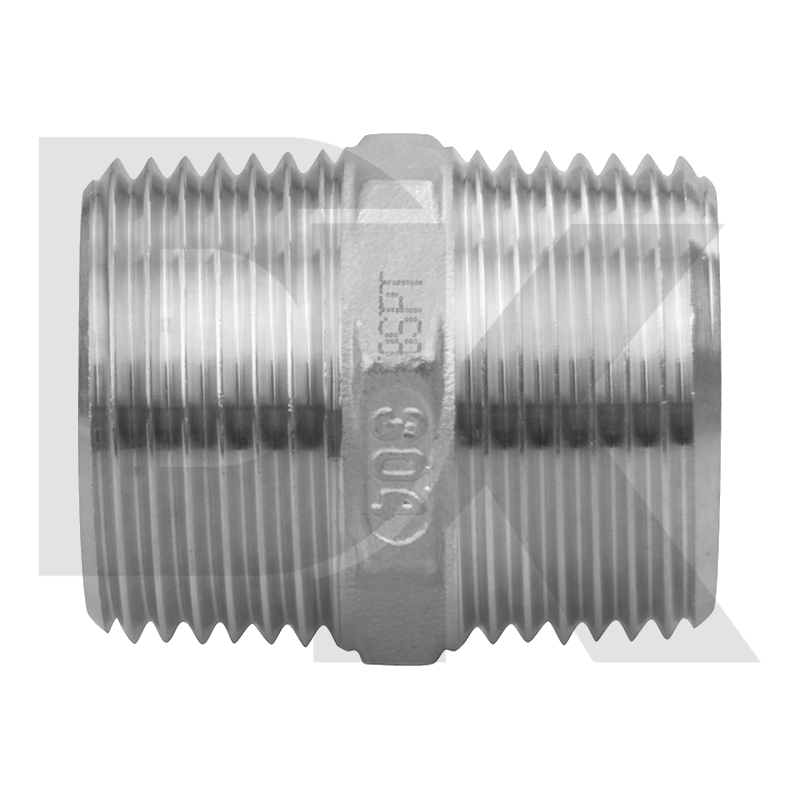

Male Thread Npt Bspt 316 Stainless Steel Hex Nipple

Inquire Now Next Product

product description

hex nipple 304, 316 stainless steel material, npt, bsp, bspt thread types can be used to connect pipes, play a connection role, good sealing, can be used in industrial and food grades, the joints can be widely used in pipes of different diameters, and can also be used in water meters, valves . Due to the threaded structure, the cost of the pipe joint is reduced, the installation, use and maintenance are extremely convenient, and at the same time, it has a very high leak-proof ability.

Size		L	S	Weight (kg)	Num.
DN	F	L	S	Weight (kg)	Num.
6	1/8”	23.6	12	0.01	MW20201301
8	1/4”	27.8	16	0.02	MW20201302
10	3/8”	28	19	0.04	MW20201303
15	1/2”	34	22	0.06	MW20201304
20	3/4”	40	30	0.09	MW20201305
25	1”	46	36	0.12	MW20201306
32	1”1/4	52.5	46	0.23	MW20201307
40	1”1/2	54	50	0.26	MW20201308
50	2”	62	65	0.40	MW20201309
65	2”1/2	70	80	0.70	MW20201310
80	3”	78.4	90	0.90	MW20201311
100	4”	94	120	1.50	MW20201312
