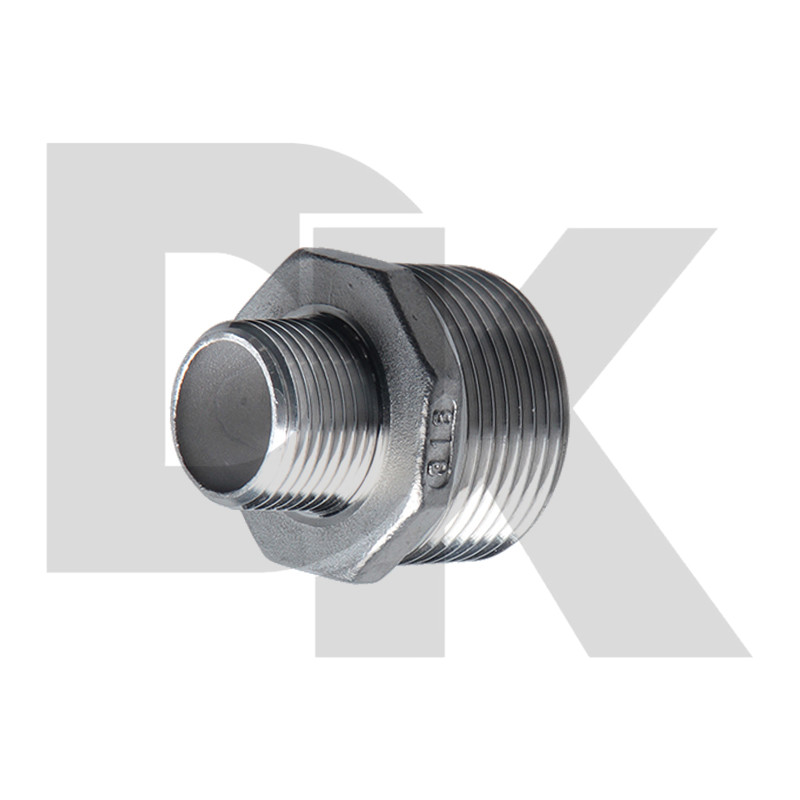

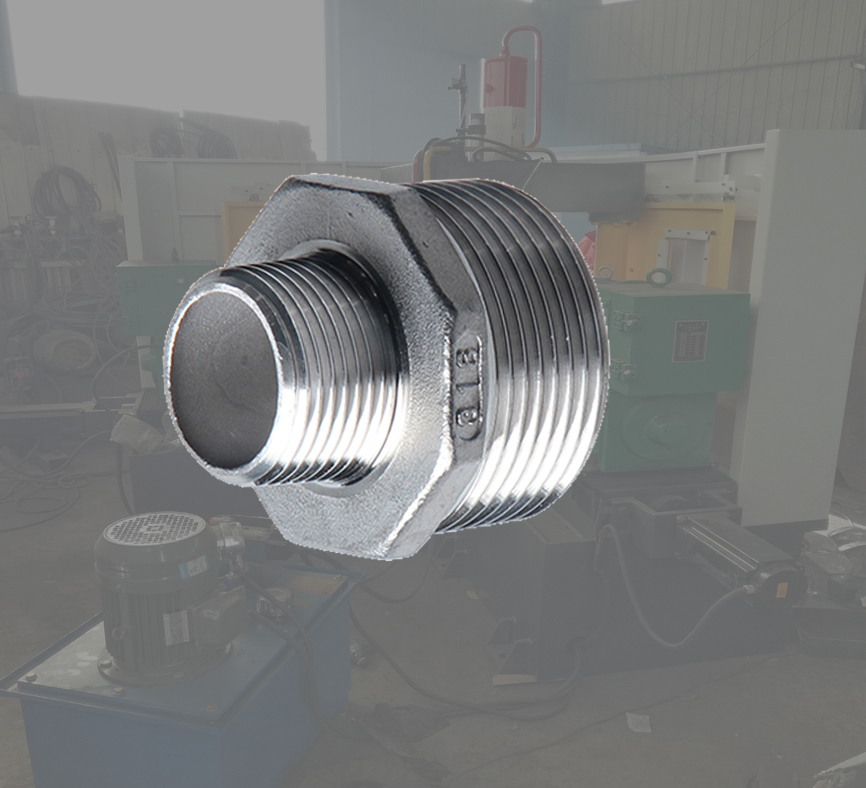

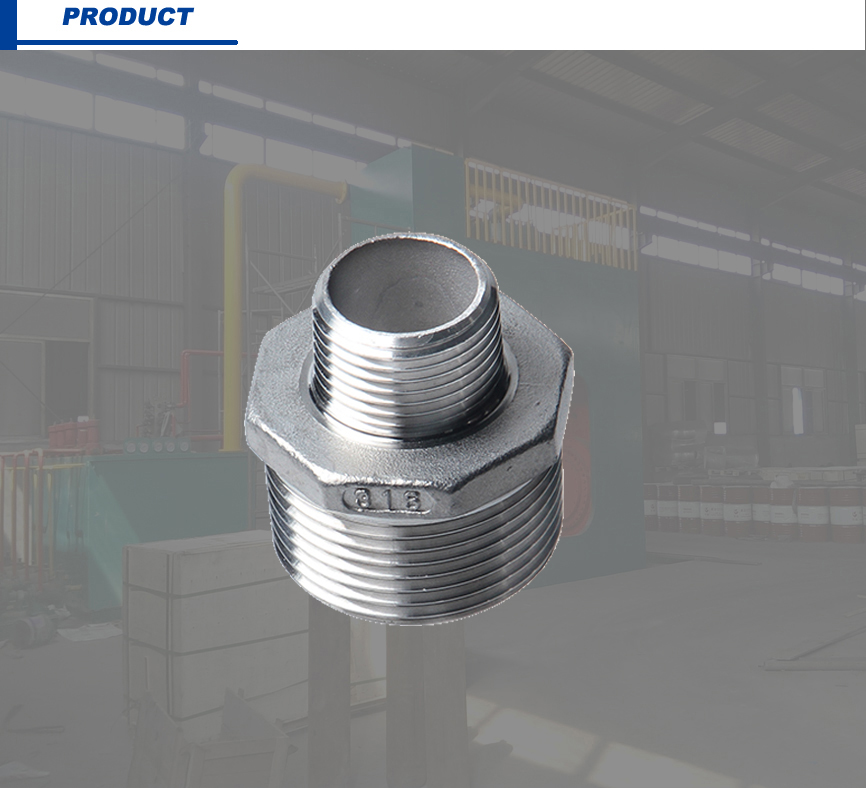

Male Thread Npt Bspt 304 316 Reducing Hex Nipple

Inquire Now Next Product

product description

reducing hex nipple can connect different out diameter pipe and fitting, different thread types have the different connect way,this fitting can change the water or liquid speed.Bsp,bspt,npt can do it as your required.

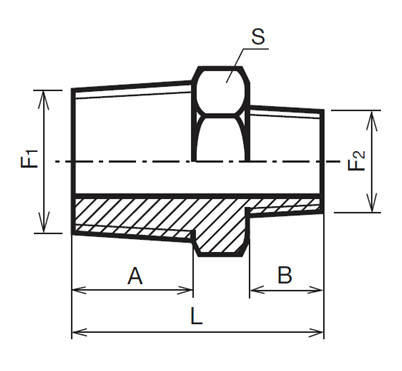

Size			S	L	A	B	Weight (kg)	Num.
DN	F1	F2	S	L	A	B	Weight (kg)	Num.
8/6	1/4"	1/8"	14	25	12	10	0.01	MW20201101
10-6	3/8"	1/8"	19	30	12	11	0.04	MW20201102
10-8	3/8"	1/4"	19	30	12	11	0.04	MW20201103
15-6	1/2"	1/8"	23	32	14	11	0.06	MW20201104
15-8	1/2"	1/4"	23	32	14	11	0.04	MW20201105
15-10	1/2"	3/8"	23	32	14	11	0.07	MW20201106
20-8	3/4"	1/4"	27	32	14	11	0.07	MW20201107
20-10	3/4"	3/8"	27	32	14	14	0.07	MW20201108
20-15	3/4"	1/2"	27	35	14	11	0.17	MW20201109
25-8	1"	1/4"	36	37	18	11	0.17	MW20201110
25-10	1"	3/8"	36	37	18	11	0.16	MW20201111
25-15	1"	1/2"	36	40	18	14	0.14	MW20201112
25-20	1"	3/4"	36	40	18	14	0.29	MW20201113
32-10	1"1/4	3/8"	46	41	18	14	0.29	MW20201114
32-15	1"1/4	1/2"	46	41	18	14	0.29	MW20201115
32-20	1"1/4	3/4"	46	41	18	14	0.26	MW20201116
32-25	1"1/4	1"	46	45	18	18	0.24	MW20201117
40-15	1"1/2	1/2"	50	44	19	14	0.35	MW20201118
40-20	1"1/2	3/4"	50	44	19	14	0.35	MW20201119
40-25	1"1/2	1"	50	48	19	18	0.35	MW20201120
40-32	1"1/2	1"1/4	50	48	19	18	0.3	MW20201121
50-20	2"	3/4"	65	48	20	18	0.6	MW20201122
50-25	2"	1"	65	48	20	18	0.6	MW20201123
50-32	2"	1"1/4	65	48	20	18	0.6	MW20201124
50-40	2"	1"1/2	65	50	20	19	0.5	MW20201125
65-25	2"1/2	1"	80	65	30	25	1.25	MW20201126
65-32	2"1/2	1"1/4	80	65	30	25	1.25	MW20201127
65-40	2"1/2	1"1/2	80	65	30	25	1.25	MW20201128
65-50	2"1/2	2"	80	65	30	25	1.25	MW20201129
80-50	3"	2"	90	72	35	30	1.65	MW20201130
80-65	3"	2"1/2	90	72	35	30	1.65	MW20201131
