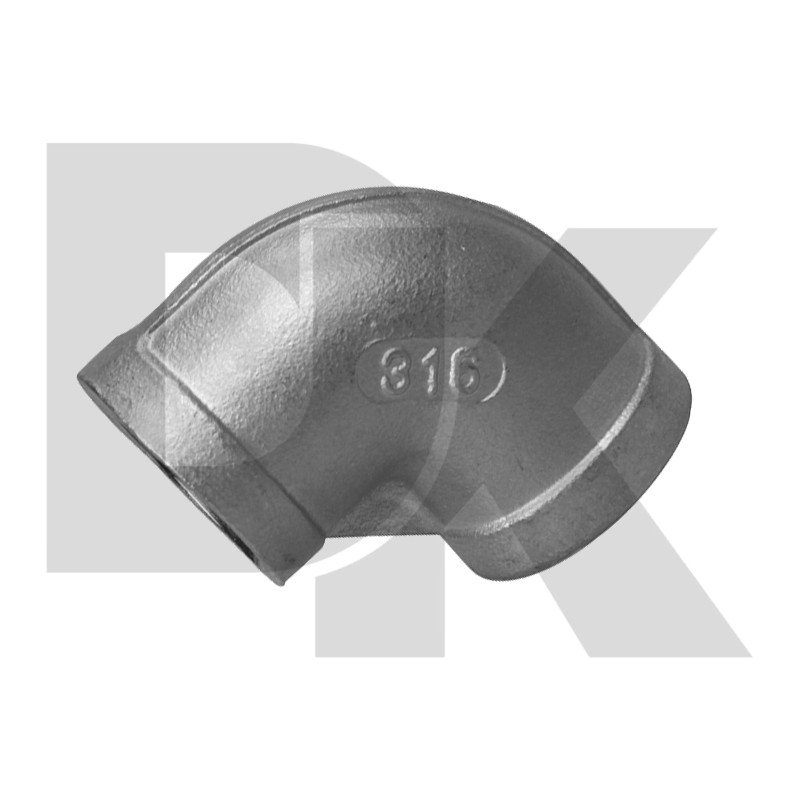

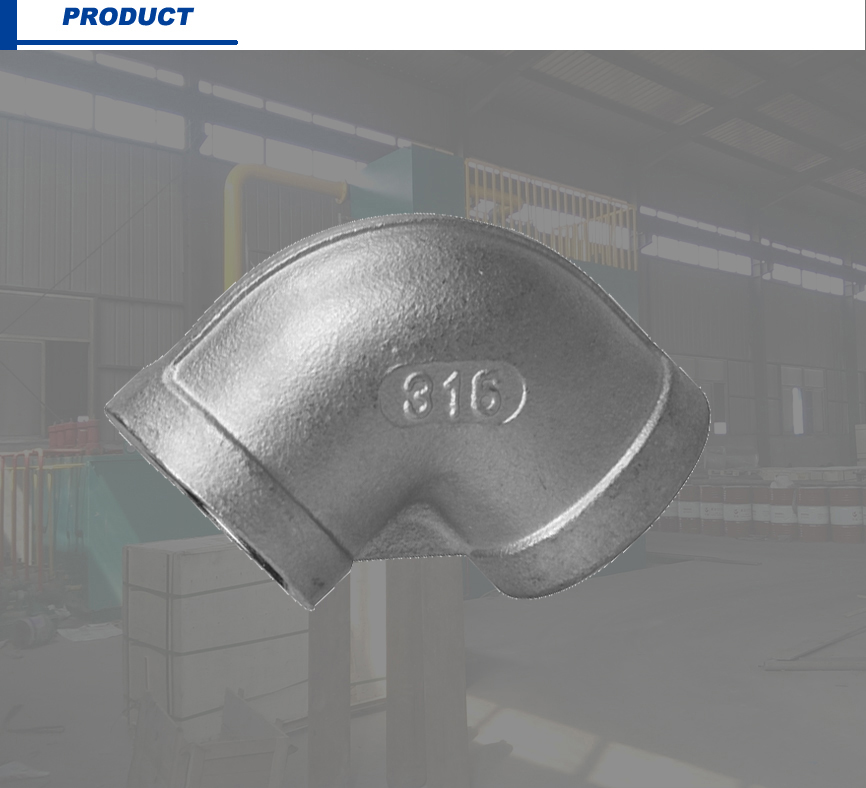

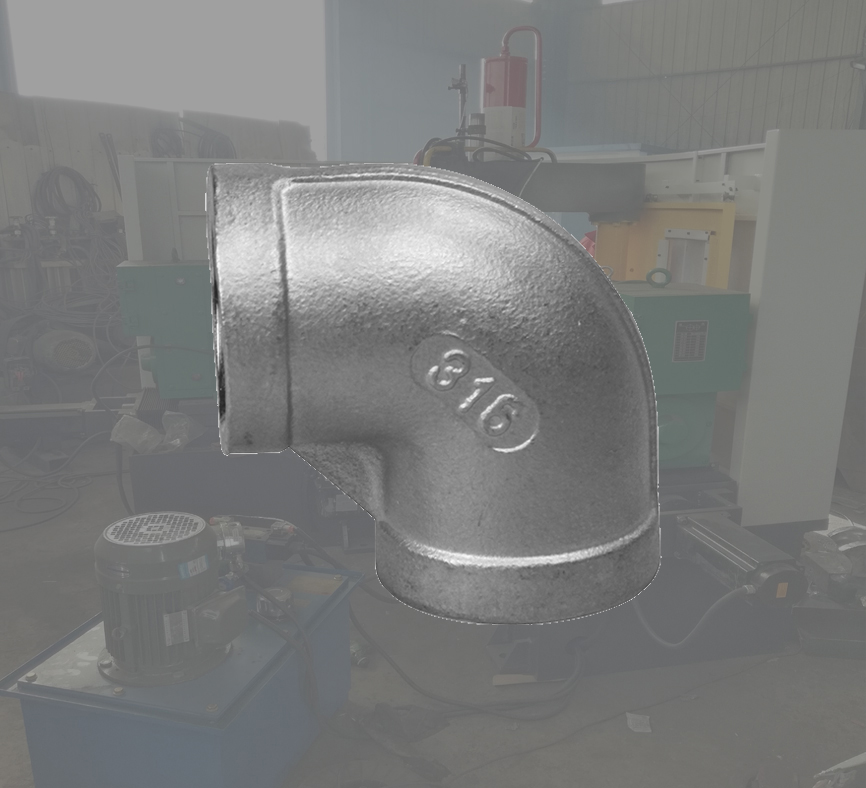

product description
Installation: After the sealing is done, install it. First tighten the internal and external threads by hand. When screwing, the positive axis of the thread must be aligned, and the thread has a relaxed feeling , When screwing, it depends on the size of the lever arm of the pipe pliers. When the lever arm is large, people will save effort and not feel it, and remember not to tighten it too much, it will damage the pipe fittings and even cause the pipe fittings to crack. And leak. Because this product is a stainless steel product with beautiful appearance, when installing with a pipe wrench, if a steel tooth pipe wrench is used, the bite of the pipe fitting should be covered with cloth to avoid damaging the appearance of the pipe fitting.
Size | A | Weight (kg) | Num. | |
DN | F | |||
6 | 1/8” | 17.5 | 0.04 | MW20200101 |
8 | 1/4” | 19.5 | 0.06 | MW20200102 |
10 | 3/8” | 23.5 | 0.07 | MW20200103 |
15 | 1/2” | 27.5 | 0.10 | MW20200104 |
20 | 3/4” | 32.5 | 0.16 | MW20200105 |
25 | 1” | 38.5 | 0.26 | MW20200106 |
32 | 1”1/4 | 45.5 | 0.51 | MW20200107 |
40 | 1”1/2 | 48.5 | 0.55 | MW20200108 |
50 | 2” | 57.5 | 0.80 | MW20200109 |
65 | 2”1/2 | 69.5 | 1.10 | MW20200110 |
80 | 3” | 78.5 | 1.58 | MW20200111 |
100 | 4” | 96.5 | 1.98 | MW20200112 |
