product description

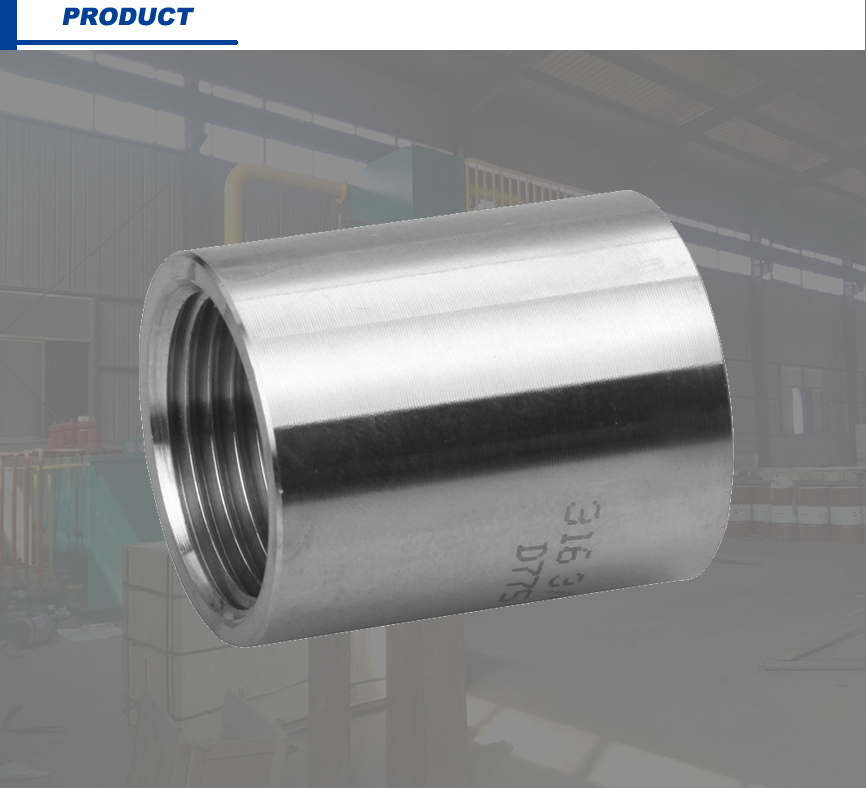

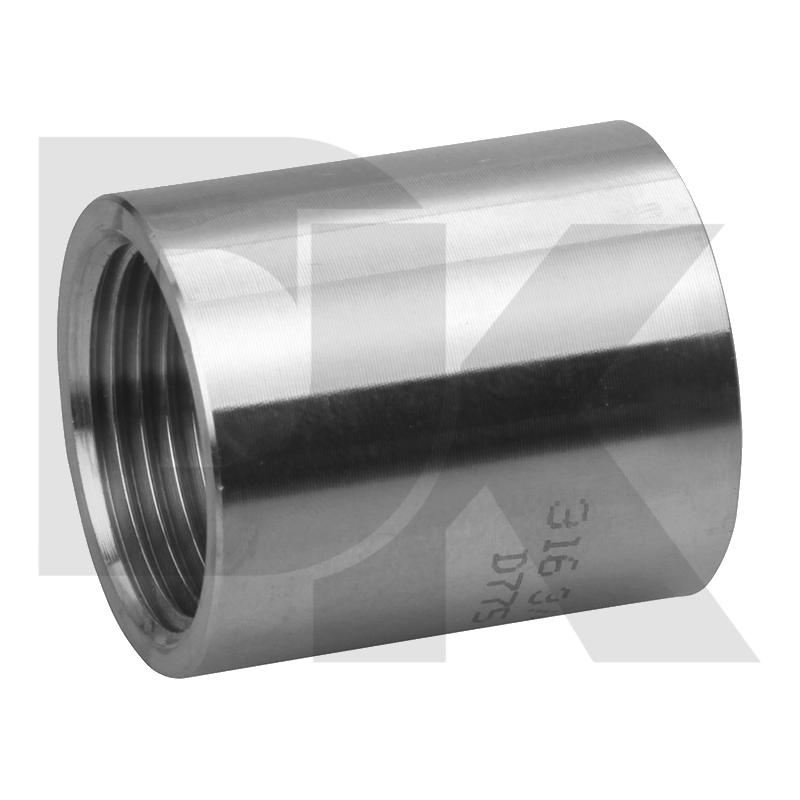

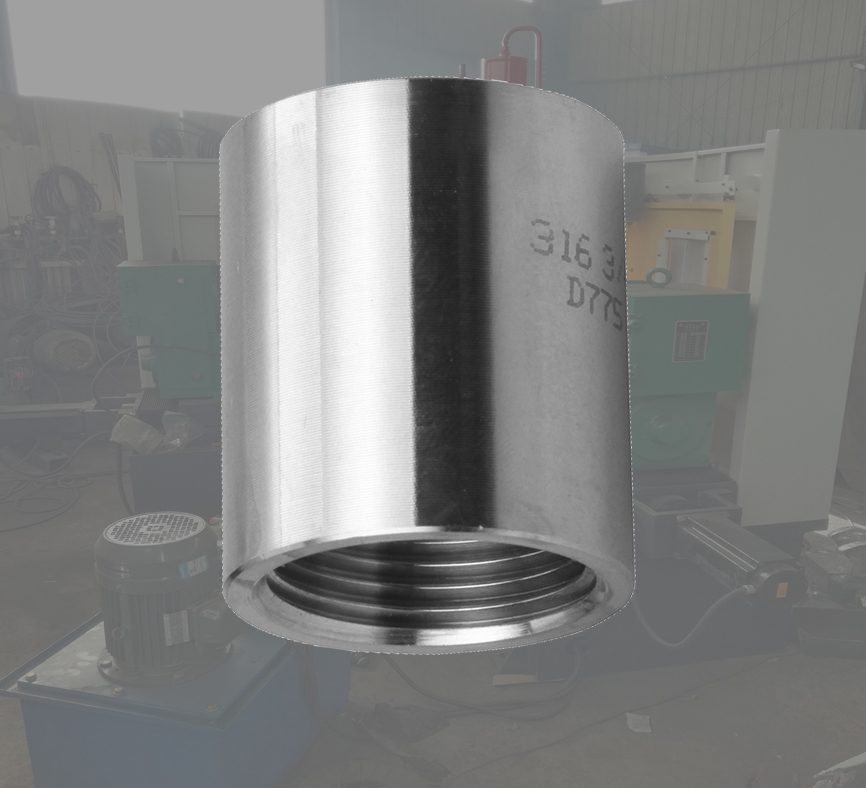

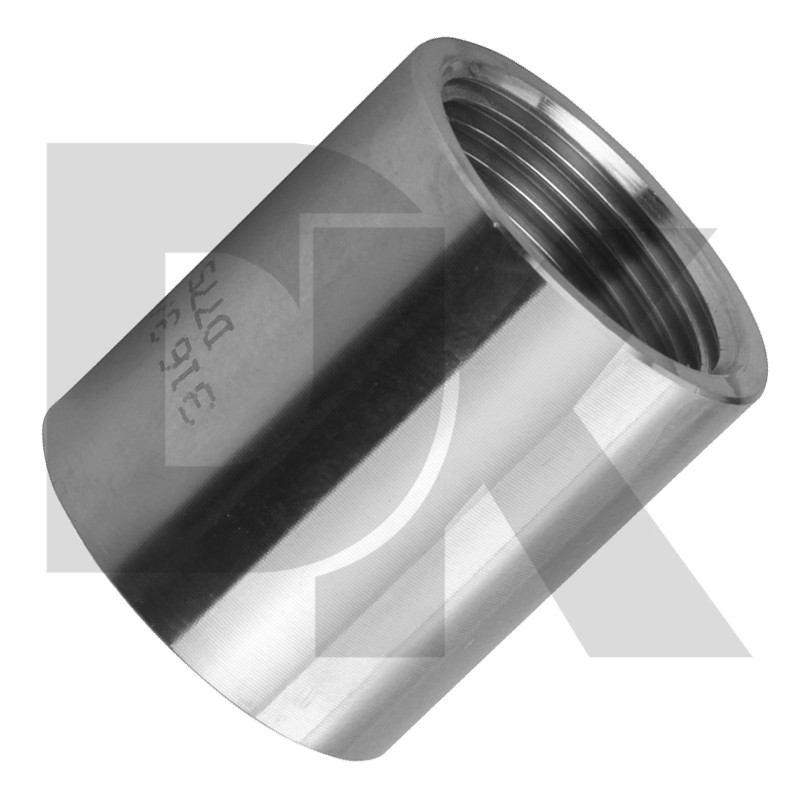

coupling refers to a threaded pipe connection, which is the most common type of pipe fitting in industry and life. couplings make the connection of pipes easier, disassembly and replacement are easier, and the cost of pipe connection is greatly saved. couplings generally include threaded elbows, threaded tees, threaded unions, and threaded smooth joints.

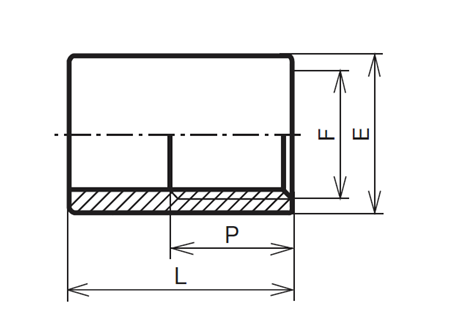

| Size | L | E | Weight (kg) | Num. | |
| DN | F | ||||
| 6 | 1/8” | 20 | 14 | 0.01 | MW20201201 |
| 8 | 1/4” | 25 | 18.5 | 0.02 | MW20201202 |
| 10 | 3/8” | 27 | 21.5 | 0.03 | MW20201203 |
| 15 | 1/2” | 34 | 26.5 | 0.06 | MW20201204 |
| 20 | 3/4” | 36 | 32 | 0.08 | MW20201205 |
| 25 | 1” | 43 | 39.5 | 0.14 | MW20201206 |
| 32 | 1”1/4 | 48 | 48.5 | 0.2 | MW20201207 |
| 40 | 1”1/2 | 48 | 54.5 | 0.23 | MW20201208 |
| 50 | 2” | 56 | 66.5 | 0.34 | MW20201209 |
| 65 | 2”1/2 | 65 | 82.5 | 0.53 | MW20201210 |
| 80 | 3” | 71 | 95 | 0.66 | MW20201211 |
| 100 | 4” | 83 | 123 | 1.17 | MW20201212 |
