product description

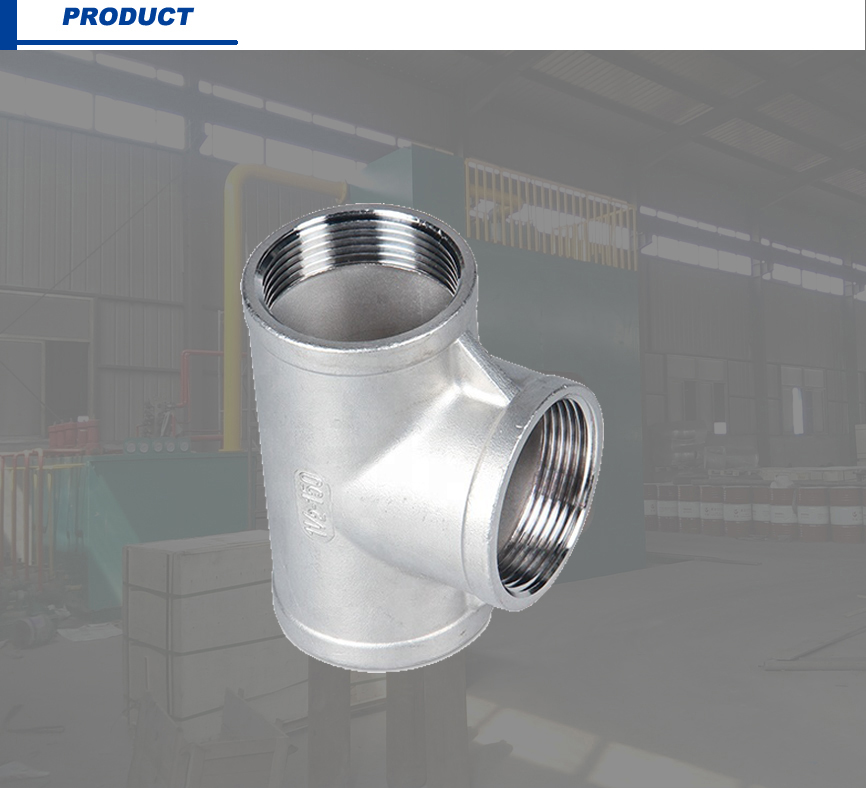

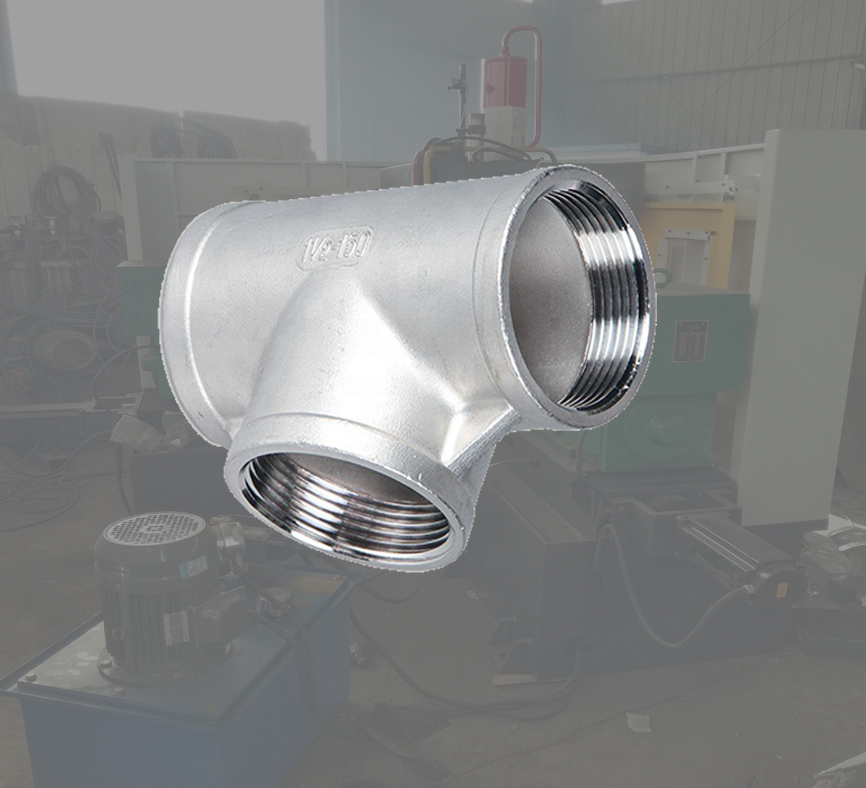

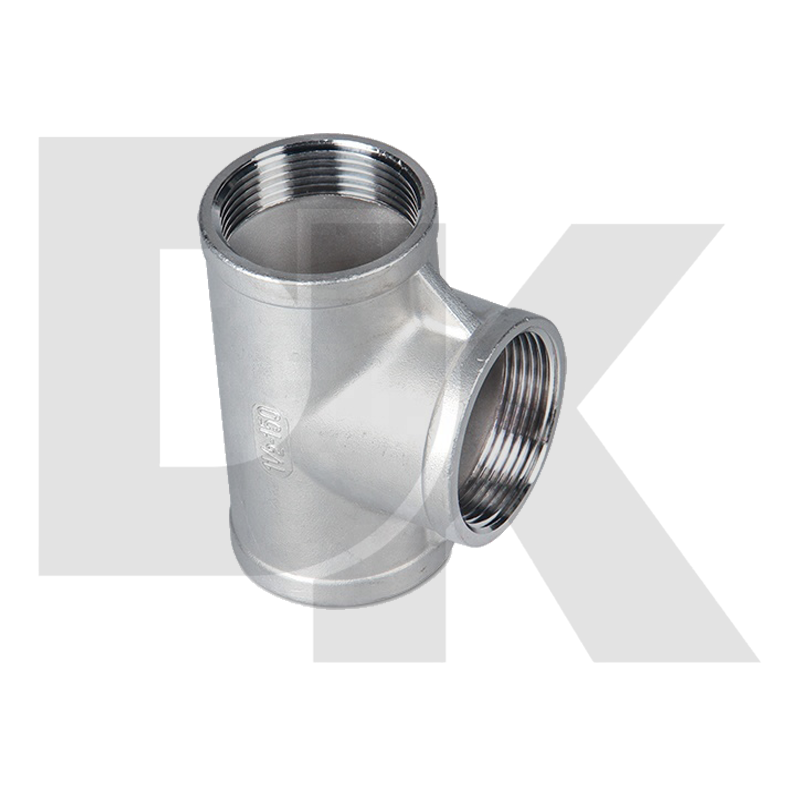

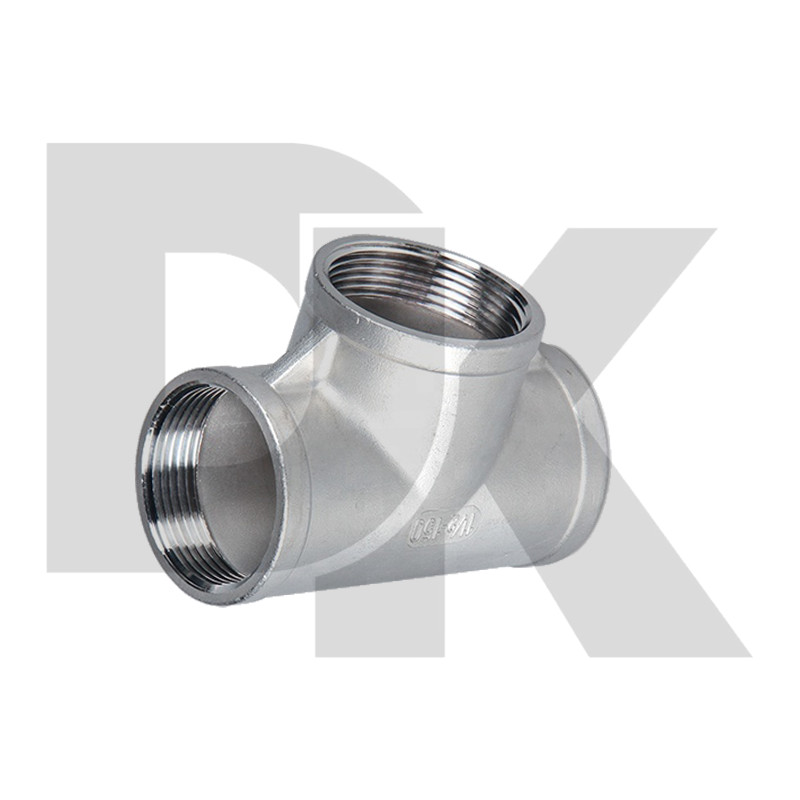

The tee is also called a pipe tee, a tee pipe and a tee joint, etc. The main function is to change the direction of the fluid. It is usually installed at the branch of the main pipeline and can be classified according to the diameter of the pipeline. Carbon steel is common. , alloy steel, stainless steel, PVC, etc.
A tee is a chemical pipe fitting with three openings, that is, one inlet and two outlets; or two inlets and one outlet. Where three identical or different pipelines converge.

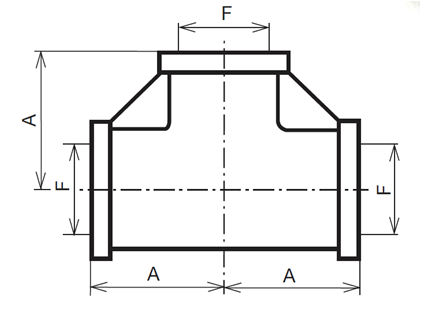

| Size | A | Weight (kg) | Num. | |
| DN | F | |||
| 6 | 1/8” | 17.5 | 0.04 | MW20200501 |
| 8 | 1/4” | 19.5 | 0.05 | MW20200502 |
| 10 | 3/8” | 23.5 | 0.07 | MW20200503 |
| 15 | 1/2” | 27.5 | 0.12 | MW20200504 |
| 20 | 3/4” | 32.5 | 0.17 | MW20200505 |
| 25 | 1” | 38.5 | 0.26 | MW20200506 |
| 32 | 1”1/4 | 45.5 | 0.34 | MW20200507 |
| 40 | 1”1/2 | 48.5 | 0.43 | MW20200508 |
| 50 | 2” | 57.5 | 0.67 | MW20200509 |
| 65 | 2”1/2 | 69.5 | 1.21 | MW20200510 |
| 80 | 3” | 78.5 | 2.92 | MW20200511 |
| 100 | 4” | 96.5 | 4.76 | MW20200512 |
