product description

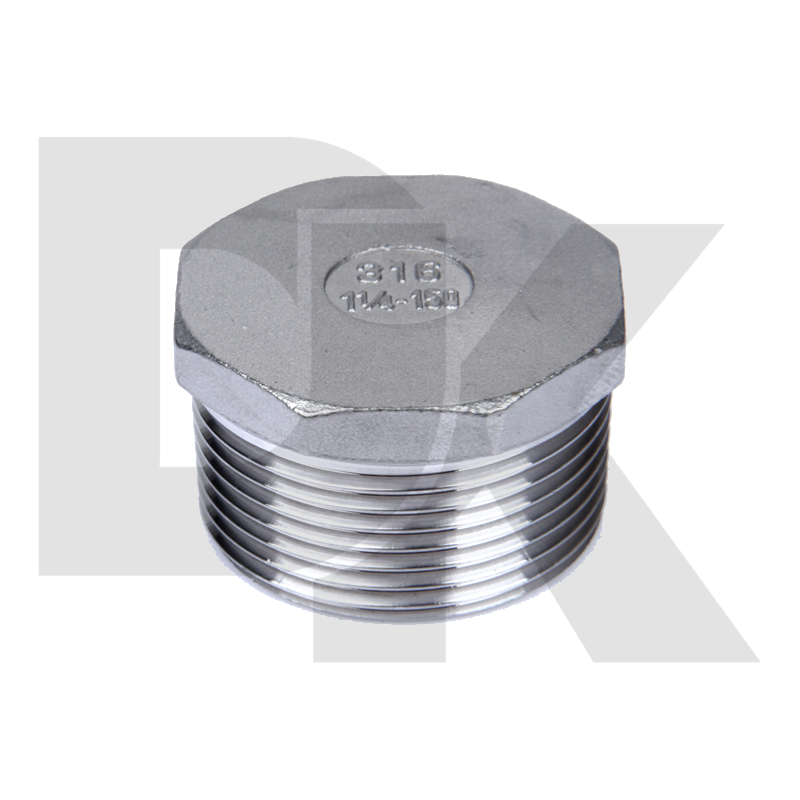

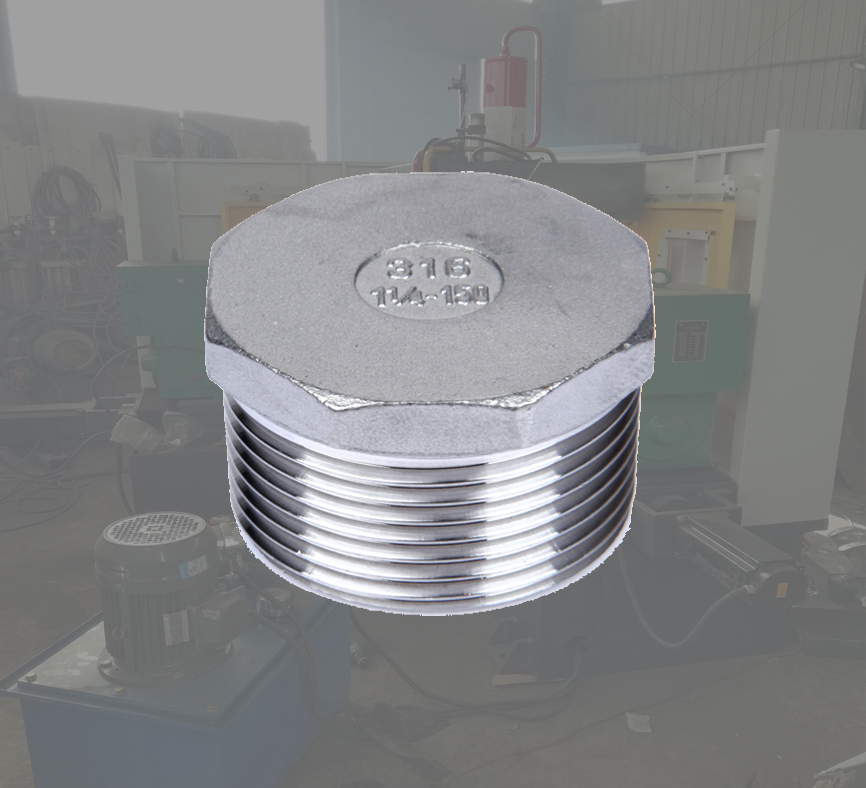

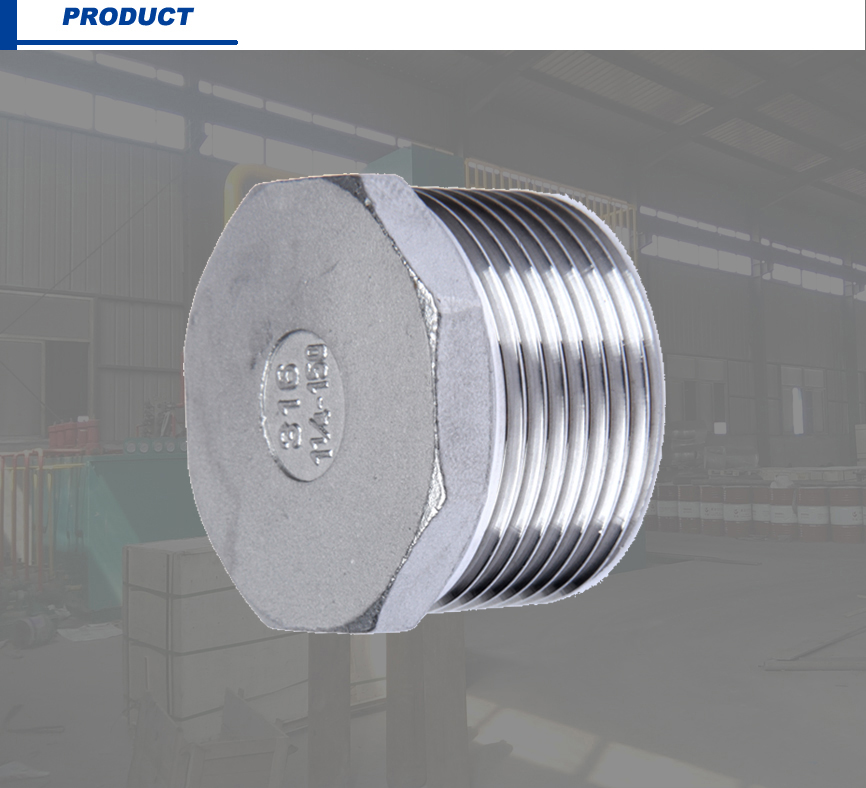

Introduction of plug
The plug is a kind of mechanical fastener, and its function is to seal.
Another name is screw plug, plug head, throat plug used in water, oil, steam and other media.
According to the different threads, it is divided into: metric system, imperial system, American system
According to the different shapes: inner hexagon plug, outer hexagon plug, taper thread plug, taper thread plug
| Size | L | p | S | Weight (kg) | Num. | |
| DN | F | |||||
| 6 | 1/8” | 15 | 10 | 12 | 0.01 | MW20201601 |
| 8 | 1/4” | 17 | 11 | 14 | 0.02 | MW20201602 |
| 10 | 3/8” | 17 | 11 | 19 | 0.03 | MW20201603 |
| 15 | 1/2” | 21 | 14 | 23 | 0.06 | MW20201604 |
| 20 | 3/4” | 21 | 14 | 27 | 0.09 | MW20201605 |
| 25 | 1” | 26 | 18 | 36 | 0.18 | MW20201606 |
| 32 | 1”1/4 | 27 | 18 | 46 | 0.32 | MW20201607 |
| 40 | 1”1/2 | 31 | 19 | 50 | 0.46 | MW20201608 |
| 50 | 2” | 32 | 20 | 65 | 0.78 | MW20201609 |
| 65 | 2”1/2 | 39 | 25 | 80 | 1.43 | MW20201610 |
| 80 | 3” | 44 | 30 | 90 | 1.60 | MW20201611 |
| 100 | 4” | 47 | 35 | 118 | 3.20 | MW20201612 |
