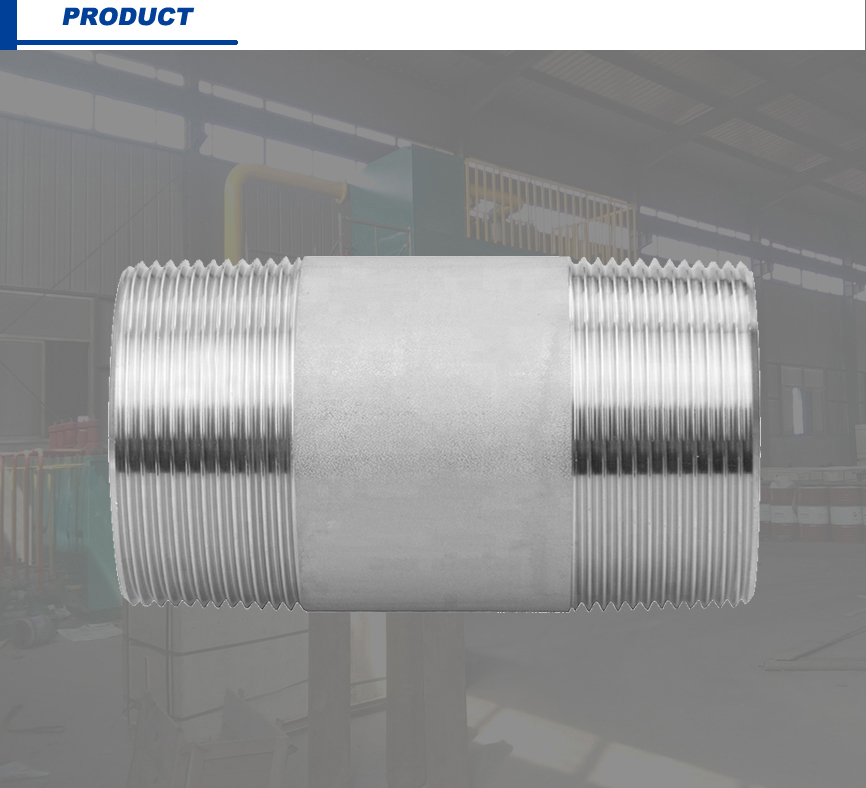

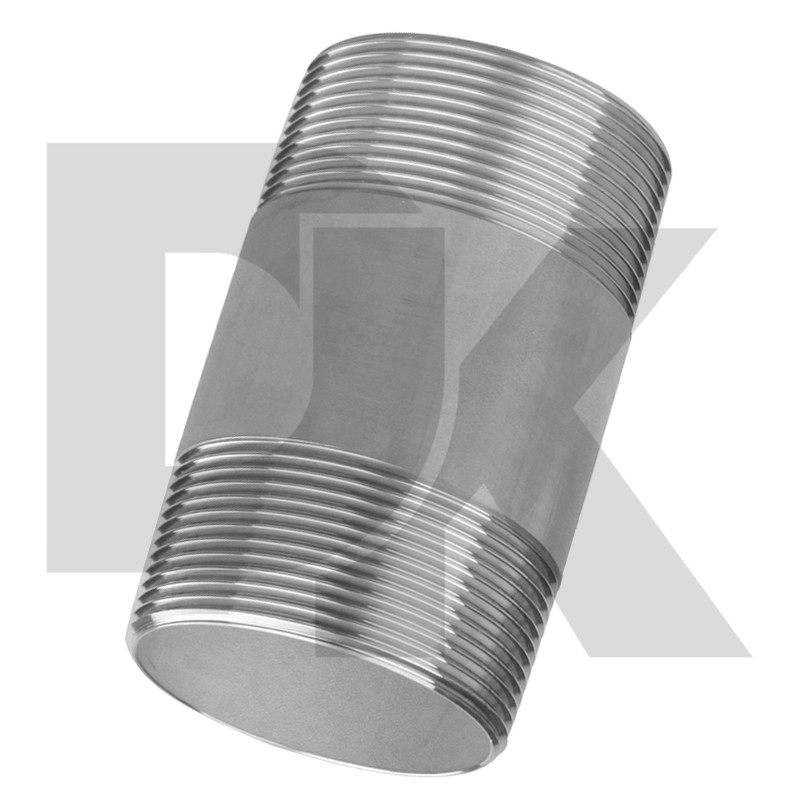

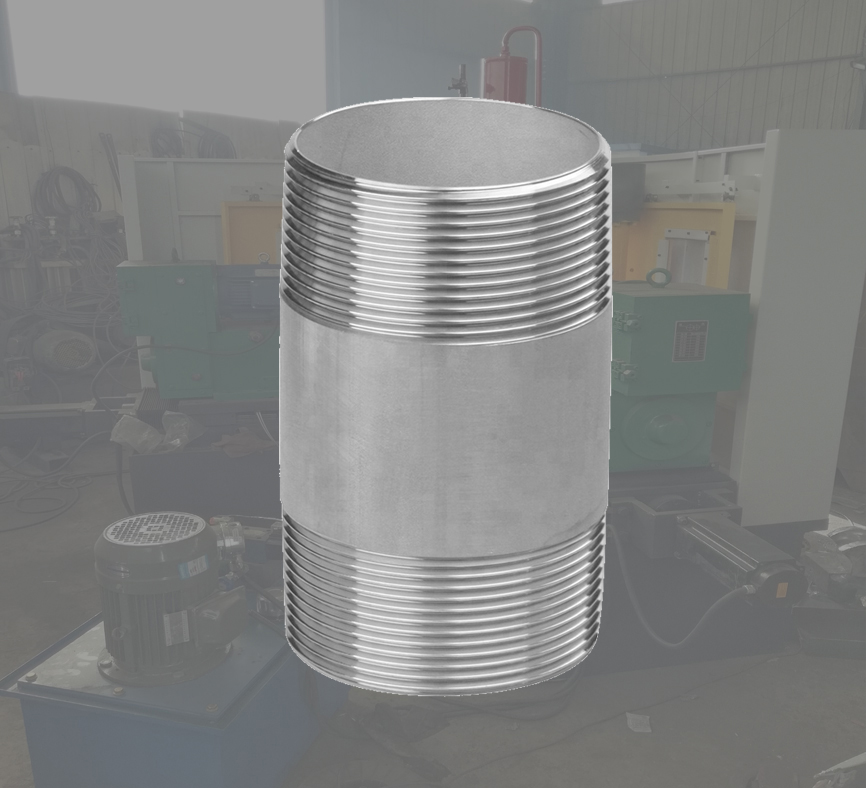

150Lb Stainless Steel Male To Male Bspt Npt Thread Barrel Nipple

Inquire Now Next Product

product description

Because male thread and female thread of the thread will occupy a certain length, the connection length of the two steel pipes is less than the separate length of the two steel pipes, which requires the calculation of the length of the welded steel pipe fittings for the threaded connection.

barrel nipple use: used to connect two pipes with the same nominal diameter. The outer joint of the through wire is often matched with the lock nut and the short pipe, and is used on the pipeline that needs to be assembled and disassembled frequently.

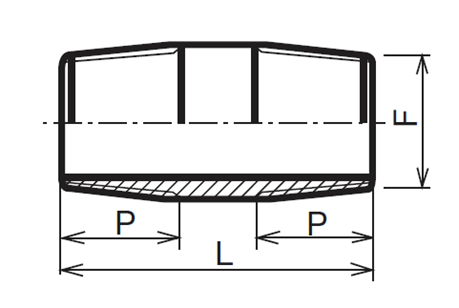

Size		P	Weight (kg)	Num.
DN	F	P	Weight (kg)	Num.
6	1/8”	10	0.08	MW20202001
8	1/4”	10	0.10	MW20202002
10	3/8”	10	0.12	MW20202003
15	1/2”	13	0.13	MW20202004
20	3/4”	14	0.20	MW20202005
25	1”	17	0.30	MW20202006
32	1”1/4	18	0.41	MW20202007
40	1”1/2	18	0.51	MW20202008
50	2”	20	0.60	MW20202009
65	2”1/2	25	0.70	MW20202010
80	3”	30	0.90	MW20202011
100	4”	35	1.20	MW20202012
