product description

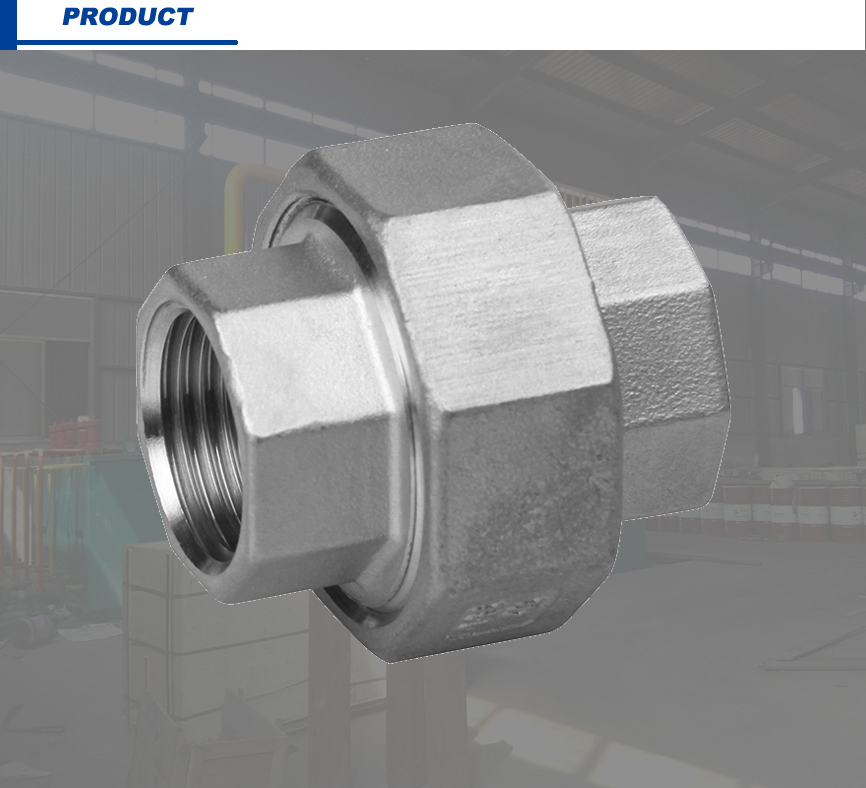

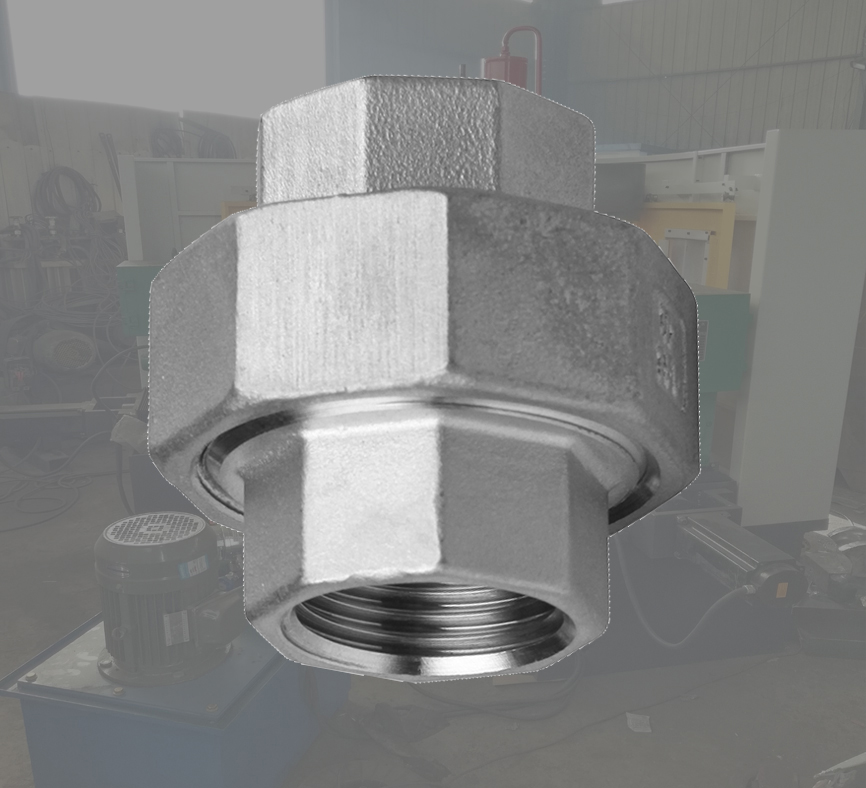

union is a kind of pipe fittings. The union is made of malleable cast iron, stainless steel and forged carbon steel, the shape is a three-dimensional polygon, and the inner layer is engraved with three-dimensional threads. The connection form is a fixed joint and a live female joint seal.
| Size | L | Weight (kg) | Num. | |||
| A | B | C | ||||
| 1/8” | 1.26 | 0.93 | - | 30 | 0.11 | MW20201801 |
| 1/4” | 1.44 | 1.10 | - | 33 | 0.10 | MW20201802 |
| 3/8” | 1.61 | 1.26 | - | 34 | 0.13 | MW20201803 |
| 1/2” | 1.72 | 1.45 | - | 36 | 0.19 | MW20201804 |
| 3/4” | 1.95 | 1.71 | - | 37 | 0.28 | MW20201805 |
| 1” | 2.06 | 2.07 | - | 41 | 0.37 | MW20201806 |
| 1”1/4 | 2.26 | 2.50 | - | 42 | 0.72 | MW20201807 |
| 1”1/2 | 2.41 | 2.82 | - | 43 | 0.91 | MW20201808 |
| 2” | 2.75 | 3.41 | - | 44 | 1.36 | MW20201809 |
| 2”1/2 | 3.22 | 4.12 | - | 46 | 3.09 | MW20201810 |
| 3” | 3.5 | 4.75 | - | 47 | 5.01 | MW20201811 |
| 4” | 3.85 | 6.00 | - | 48 | 7.71 | MW20201812 |
