product description

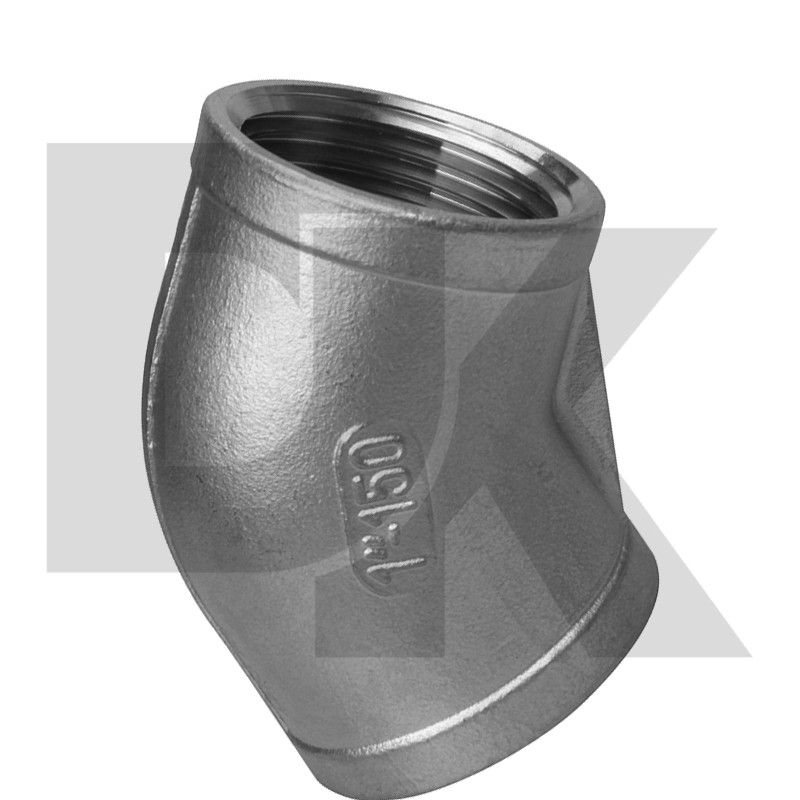

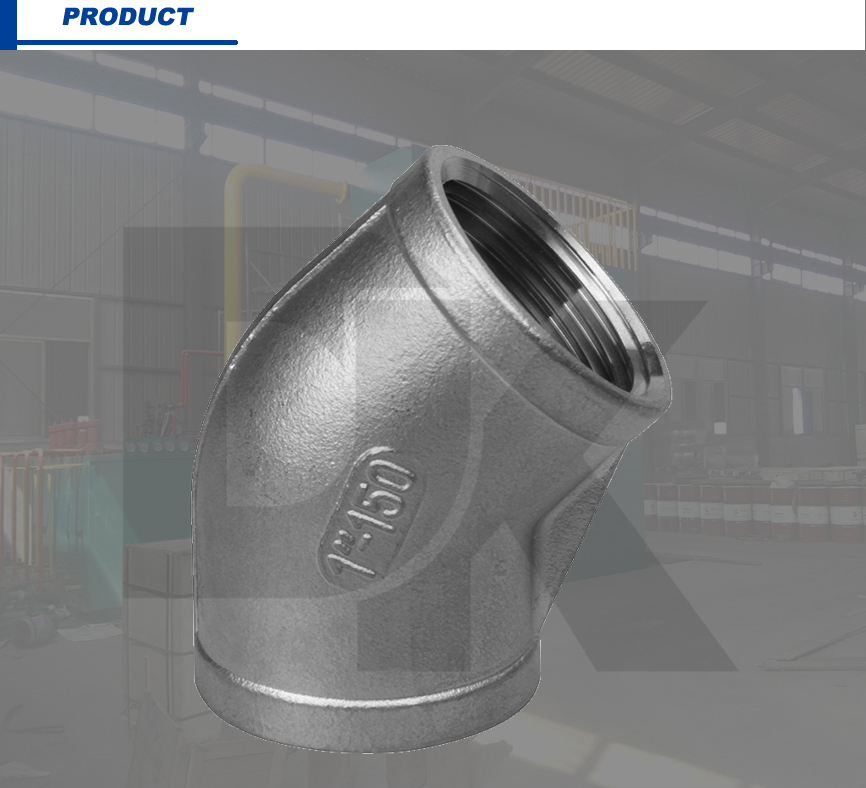

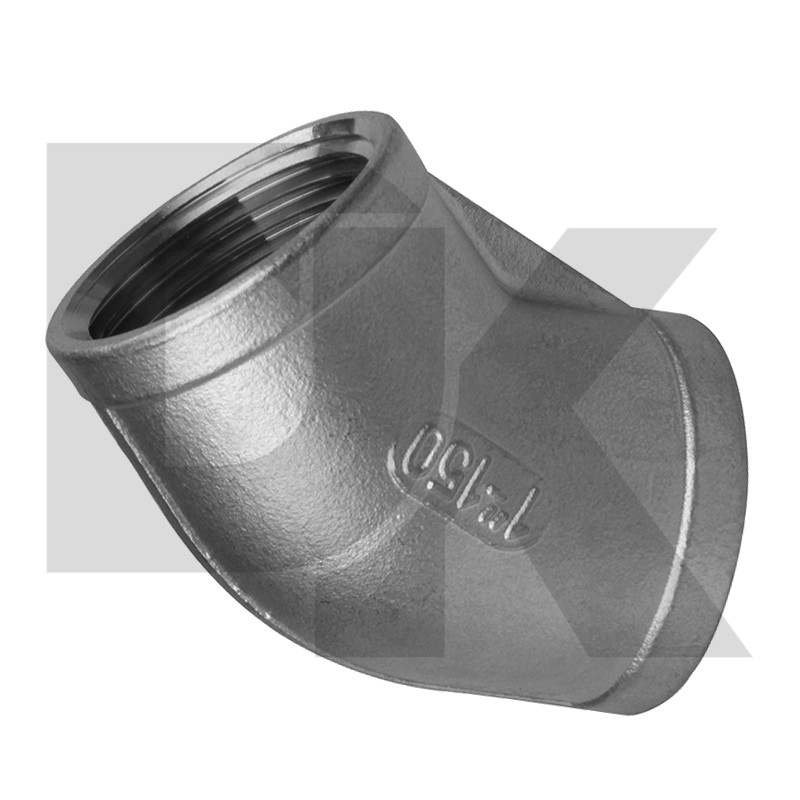

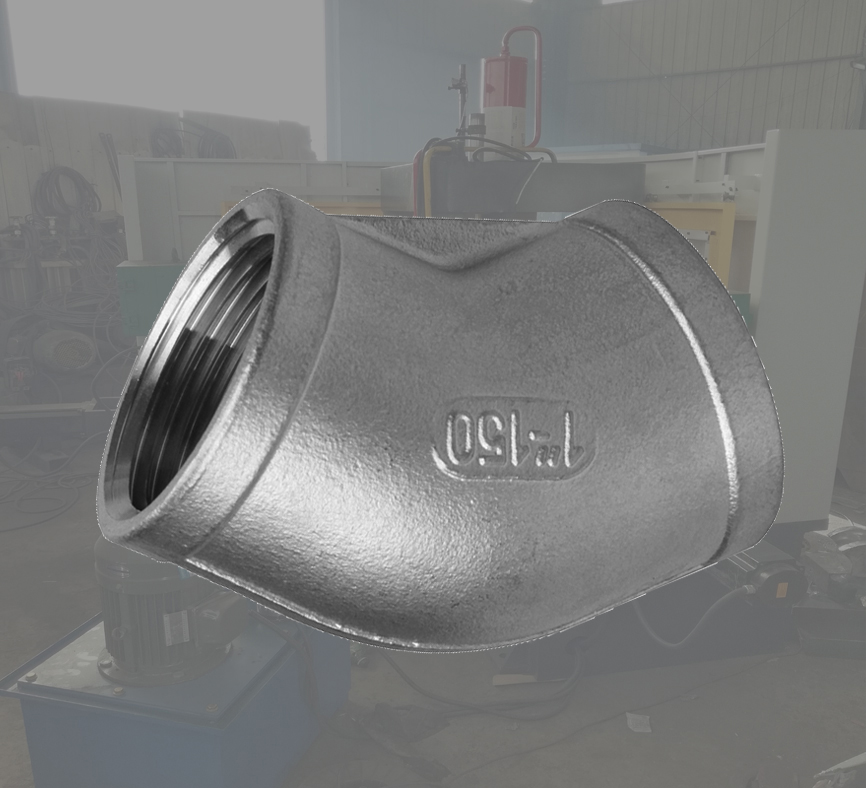

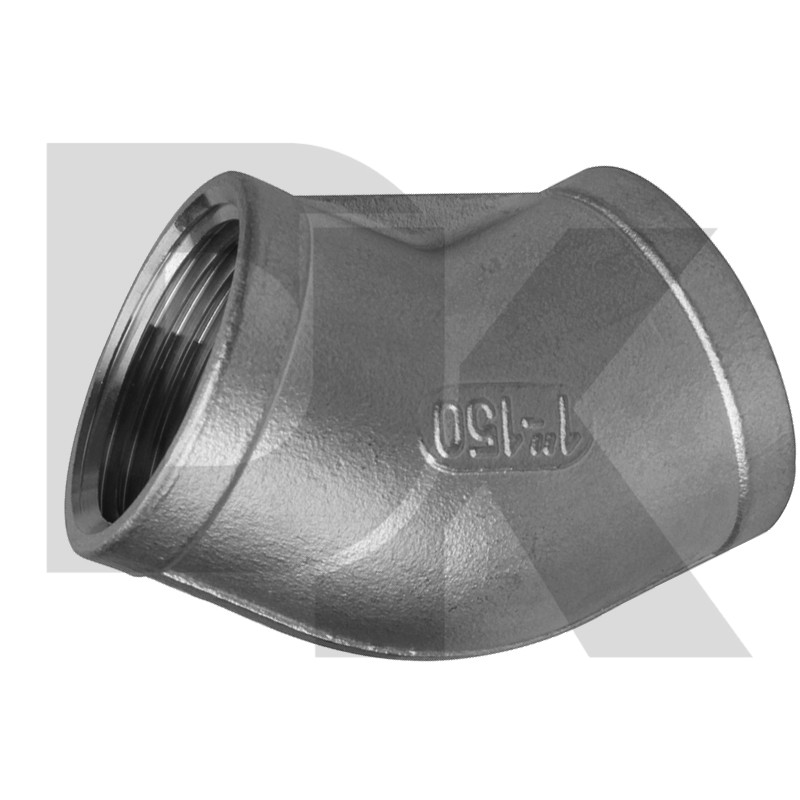

The 45° elbow of the threaded connection is a silica sol precision cast stainless steel threaded pipe fitting, which can change the fluid delivery method when the pipeline system is performing fluid delivery or pressure transmission.
It also has the function of vertically connecting two pipeline components or equipment and pipeline components on the axis. There are BSP, BSPT, NPT thread types, which make the structure more airtight.

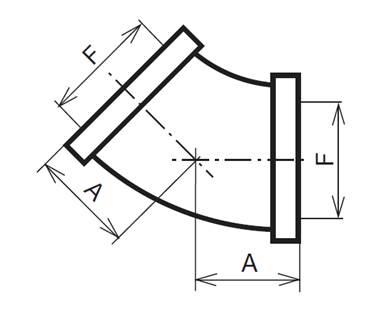

| Size | A | Weight (kg) | Num. | |
| DN | F | |||
| 6 | 1/8” | 16.5 | 0.04 | MW20200401 |
| 8 | 1/4” | 17.5 | 0.06 | MW20200402 |
| 10 | 3/8” | 19.5 | 0.08 | MW20200403 |
| 15 | 1/2” | 21.5 | 0.11 | MW20200404 |
| 20 | 3/4” | 25.5 | 0.20 | MW20200405 |
| 25 | 1” | 29.5 | 0.28 | MW20200406 |
| 32 | 1”1/4 | 33.5 | 0.46 | MW20200407 |
| 40 | 1”1/2 | 37.5 | 0.64 | MW20200408 |
| 50 | 2” | 42.5 | 0.85 | MW20200409 |
