product description

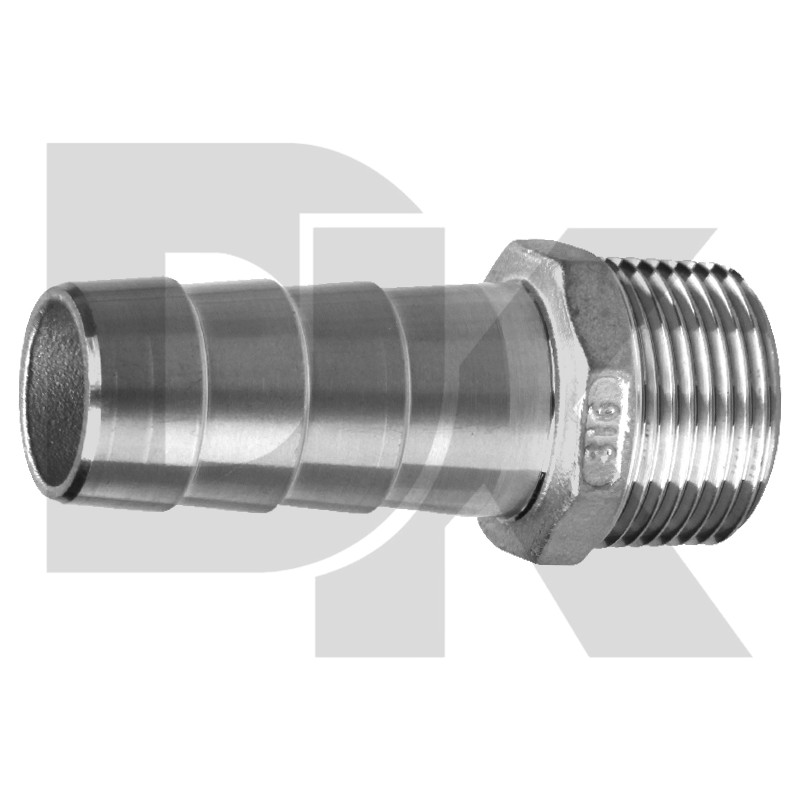

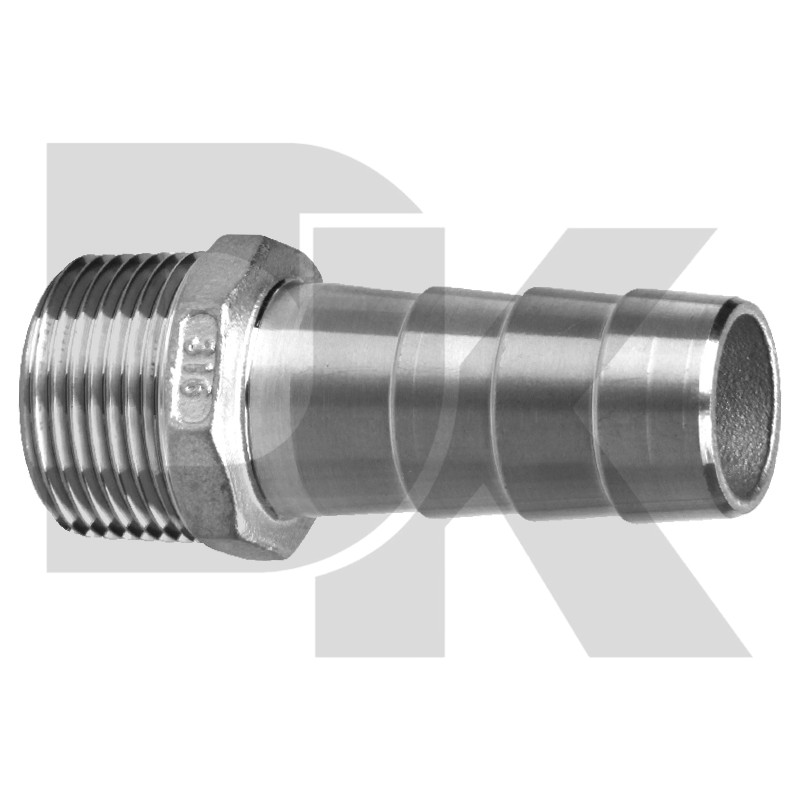

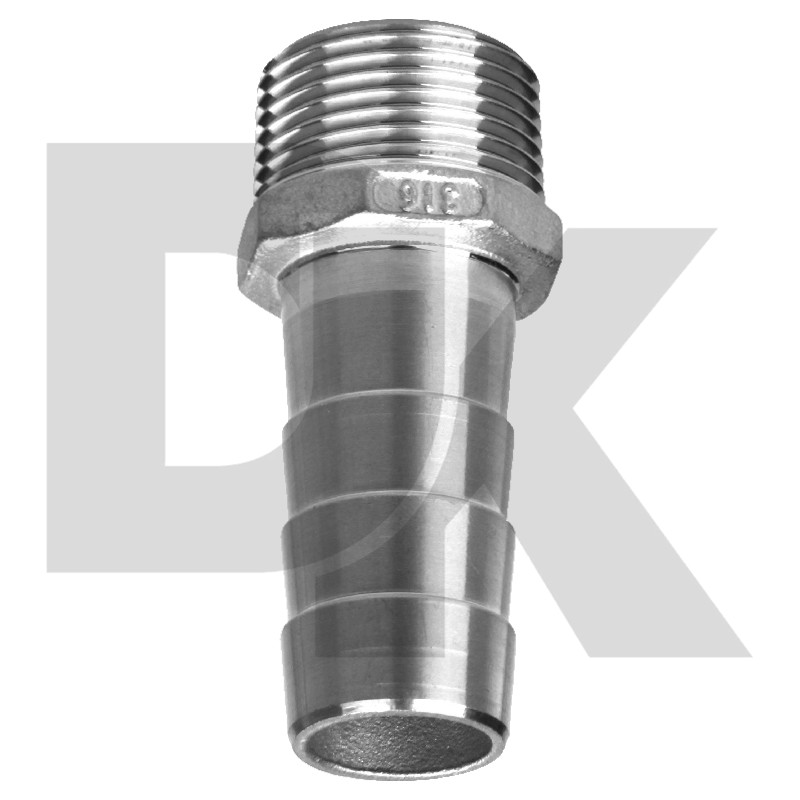

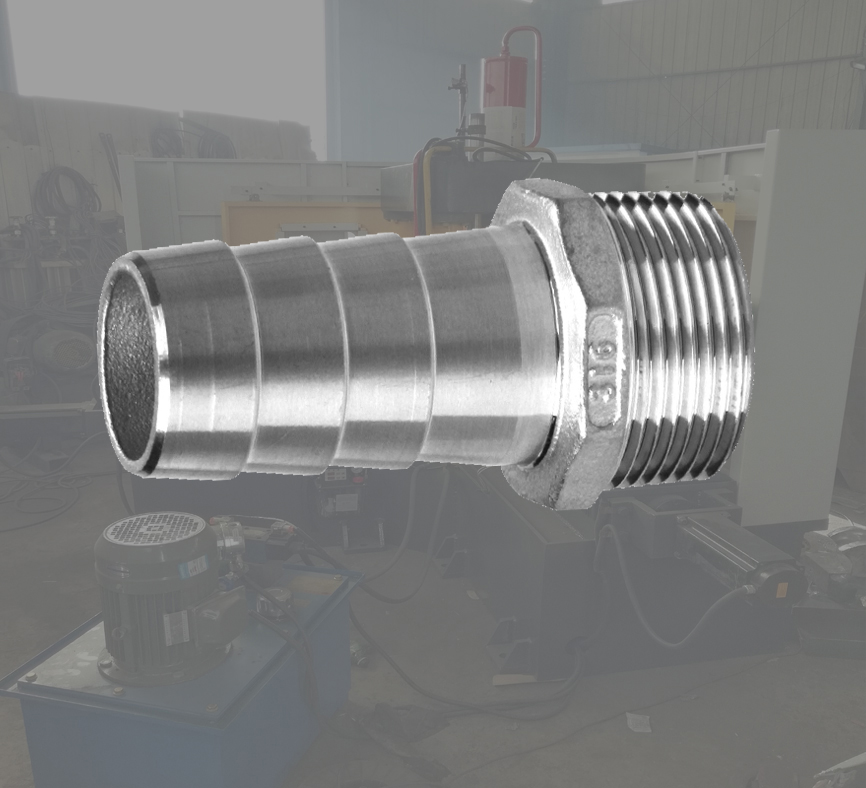

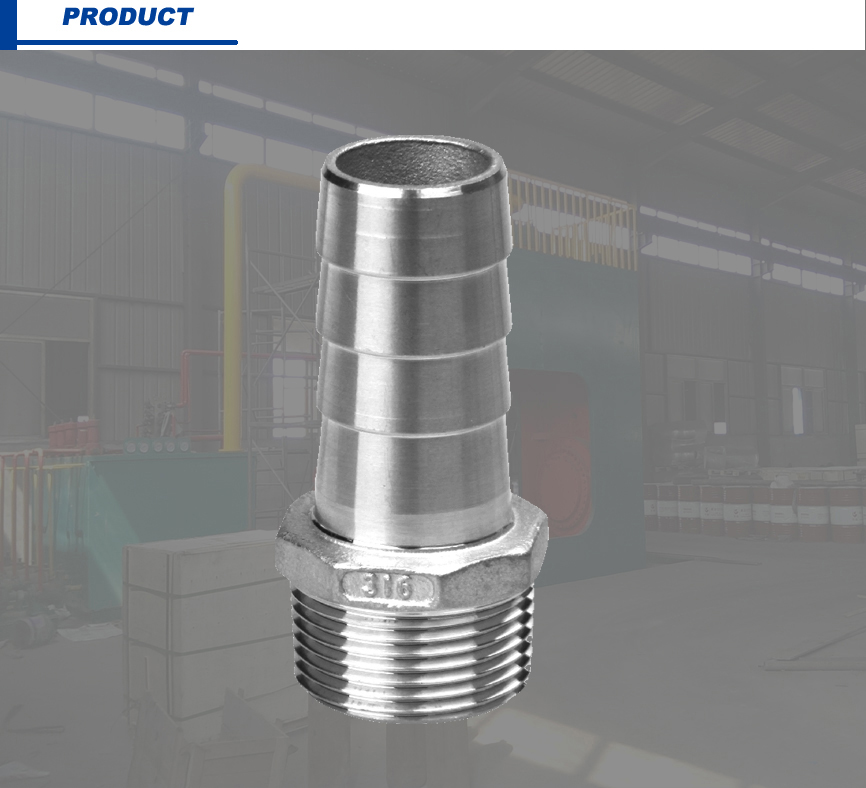

The ferrule type hose nipple can connect the unthreaded steel pipe and the hose, save the threading process, and only need to screw in the screw; the structure is compact and the strength is high. The self-fixing hose nipple can connect the unthreaded steel pipe or the unthreaded equipment outlet with the hose, saving the threading process; it is made of zinc alloy die-casting, and the surface of the iron hose nipple is galvanized, sanded, or chrome-plated ; Compact structure and high strength. Widely used in high-end buildings, hotels, hospitals, buildings, gymnasiums, museums, institutions, villas, residential quarters.

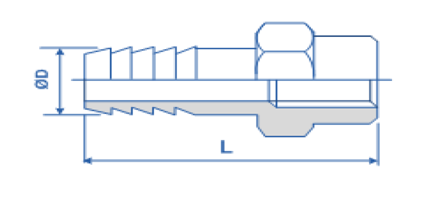

weight(kg) | Num. | |||
Size | L | ΦD | ||
1/8” | 47 | 6.3 | 0.03 | MW20201901 |
1/4” | 47 | 8 | 0.03 | MW20201902 |
3/8” | 55 | 9.5 | 0.045 | MW20201903 |
1/2” | 64 | 12.7 | 0.067 | MW20201904 |
3/4” | 68 | 19.05 | 0.12 | MW20201905 |
1” | 71 | 25.4 | 0.17 | MW20201906 |
1”1/4 | 80 | 31.8 | 0.3 | MW20201907 |
1”1/2 | 95 | 38.1 | 0.39 | MW20201908 |
2” | 105 | 50.8 | 0.62 | MW20201909 |
2”1/2 | 107 | 63.5 | 1.04 | MW20201910 |
3” | 112 | 76.2 | 1.58 | MW20201911 |
4” | 130 | 101.6 | 2.15 | MW20201912 |
